Select the type or model of safety light curtain, please download the attachment

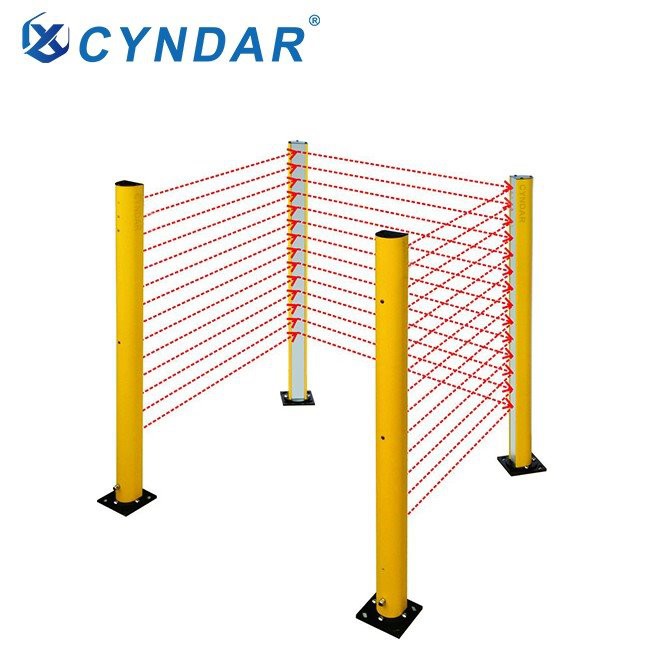

The safety light curtain is a safety-certified light curtains used in automation product, which consists of two parts: a light projector and a light receiver. The emitter emits modulated infrared light and is received by the receiver to form a protective net. When an object enters the protective net and the infrared light is blocked by the object, the receiver control circuit will immediately respond and output a control signal for the machine tool such as Emergency brakes for punches, presses, etc. In addition, there are certain requirements for the use environment of gratings and light curtains. If the dust in the environment is too large, it will affect the emission of light, thereby affecting the use of gratings and light curtains.
Ir sensor light curtain technical parameters
automation direct light curtain heating power supply: 24v 10A
Safety photoelectric sensor light curtain height: 50mm-2840mm
Main thermostat: disk package
Sealing temperature: 4℃
Disconnect temperature: 29℃
Spare thermostat: shutdown temperature - 55℃, disconnection temperature - 36℃
Beam spacing: 10/14/20/25/30/40 / 80mm (customizable)
Humidity switch: mechanical nylon membrane trigger switch
Relative humidity: 20-80%
Safety light curtain mirrors indicator light: when the heating element is turned on, the front red LED light is on
Safety light curtain detection structure: housing [stainless steel or aluminum alloy], windows [heated glass]
Working temperature: working [-20~+70℃ (no freezing)]
FAQ
1. Can you provide product catalog and light curtain safety barrier installation instructions?
Yes, we have catalogues and installation instructions for the electronic products.
2. Is the data line of QC type 4 safety sensor series all the same?
No, usually the transmitter's data lines are 4 cores, but less than 32 beams, the receiver's data line is 5 cores, and the receiver between 32 beams to 72 beams is 6 cores.
3. What is the size of the QC guardshield safety light curtain series?
The external diameter is 30mm*30mm;
4. How is your transportation?
1) Express (sample order) or by sea (bulk order) 2) Global transportation service is available 3) Please contact before ordering, because the transportation cost will change from time to time.
