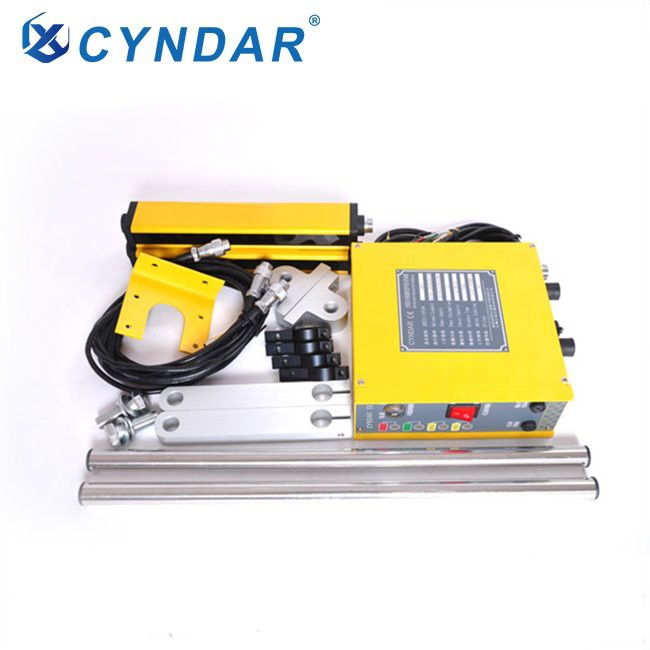

Light Curtain Safety Technical Specifications
Electrical Characteristics:
Power Consumption: ≤200 mA
Response Speed: ≤15 ms
Output Load Capacity: AC 250V/5A or DC 30V/5A
Optical System:
Light Source Type: Infrared LED
Effective Protection Height: Optical Axis Spacing × (Number of Beams - 1)
Mechanical Structure:
Dimensions: 35mm × 48mm × Jmm (J represents the length of the transmitter/receiver unit)
Process Standards: The control unit utilizes surface mount technology, providing excellent mechanical and vibration resistance.
Installation Characteristics:
Easy installation and commissioning, intuitive wiring design, and appearance conforming to European industrial equipment design standards.
Safety light curtain selection diagram
Light curtain sensor wiring diagram
Safety light curtain size chart
Assembly Line Workstation Entrance
On automated assembly lines, each workstation may have a robotic arm performing operations such as press-fitting and tightening. A vertical light curtain is installed at each workstation entrance. The equipment will only start when the workpiece is fully inside and the operator's hands are clear. This effectively prevents operators from inadvertently leaving their hands inside the workstation while the equipment is running, ensuring a perfect balance between production speed and operator safety.
light curtains used in automation
Safety grating light curtain is divided into optical synchronization and line synchronization. Optical synchronization refers to the light curtain sensor's receiving and transmitting without any communication line connection. The transmission emits infrared light according to the prescribed rules, and the receiver receives the light signal. , Comparing the signals emitted by the transmitter, if they are consistent, it means that the light curtain is not blocked at this time, and a light signal is output.
Business & Support
1. Quote Time:
We typically provide a detailed commercial quote within 12 hours of receiving an inquiry.
2. Service System:
We adhere to the philosophy of continuous improvement and prioritize customer satisfaction, providing comprehensive technical services and customized solutions.
3. Purchasing Process:
Please contact us directly to place your order. We accept various payment methods, including PayPal, Western Union, and corporate accounts.
4. Company Qualifications:
We are a manufacturer specializing in the research, development, and manufacture of photoelectric safety sensors.
5. Customization:
We support customized data cable production, with a turnaround time of 10-20 business days.
