Download the product brochure to view all parameters-the model is subject to the product brochure

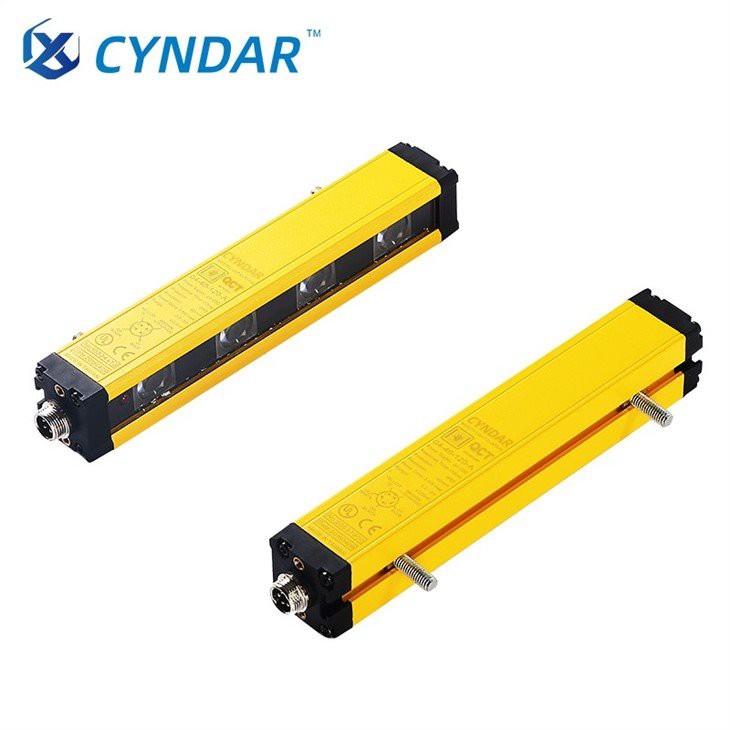

CCT safety light curtain sensor has powerful functions, perfect self-checking, easy to use, strong earthquake resistance and various installation methods. The safety curtain sensor can be applied to a variety of high-risk equipment, and can protect the safety of operators and equipment in harsh environments. With dual loop external control
Safety photoelectric sensor technical parameters
Protection Height：Distance of optic axis*(Qty of beam-1)
Reaction Time：≤15ms
Detection Range：30~3000mm, 30~6000mm
Interference of Light：10000Lux(Angle of incidence≥5°)
Type of Light Curtain：Through-beam
Protection Level：IP65
Appearance Dimension：30×30mm×Jmm(J is the length of transmitter /receiver)
Controller：QCA/QCA2
Light Source：Infrared LED
Current Consumption：≤200mA
Ambient Humidity：Operating:35~85%RH Saving:35~95%RH
Working Temperature：Operating:-10~+40℃(do not freeze),Saving:-25~+55℃
Safety light curtain selection diagram
Light curtain sensor wiring diagram
Safety light curtain size chart
Safety light curtain installation diagram
FAQ
1. Do you have any certifications of the Automation light curtain safety system?
Yes, we have European Union CE certification, ISO9001 and EM Report of TUV;
2. What material is the types of safety light curtain system made up of?
Aluminum alloy shell with ABS nylon cover;
3. What brand’s electronic materials are used in the electronic safety light curtain?
IC, Japanese MURATA capacitor;
4. How does your factory control quality?
Quality is the most important to us. Before we add products to the catalog, we will check the factory and test samples.
5. Do you test all products before shipping? To
Yes, we have 100% factory inspection, aging test and anti-interference test on all machines.
