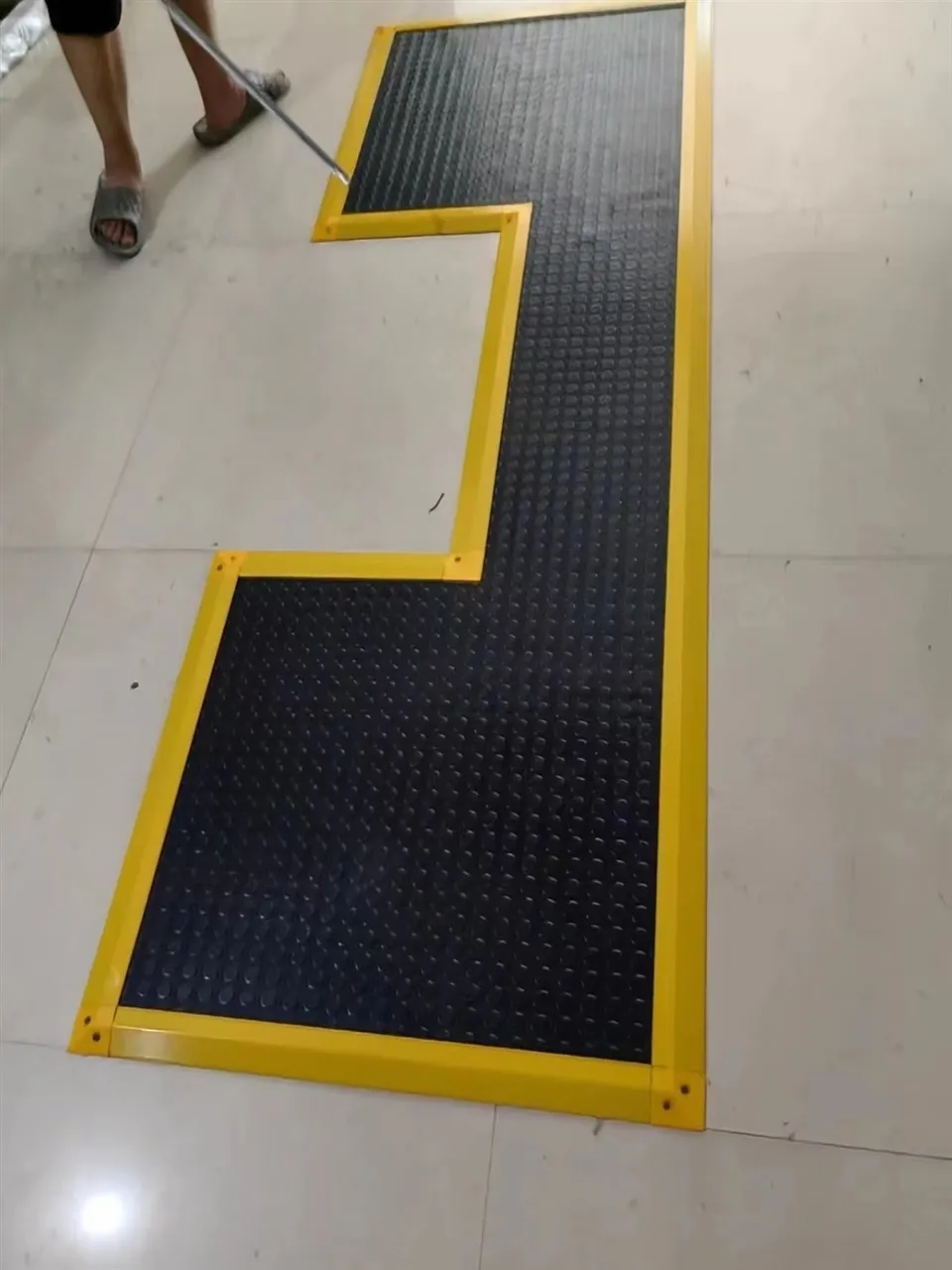

Safety Mat
PSM4-300*700-FBK
- Product Name: Safety Mat
- Black Mat Model: PSM4-300*700-FBK
- Yellow Mat Model: PSM4-300*700-FYK
- Red Mat Model: PSM4-300*700-FHK
- Sensor Mat Width: 300mm
- Sensor Mat Length: 700mm
- Total Installation Dimensions: 390mm*790mm (Including yellow aluminum alloy, which does not have a sensing function and is optional)
- Trigger Force: 35kg
- Material: PVC Base Plate + Rubber Contact Panel (Hard Mat)
- Cable Length: 3m
- Wire Cores: 4-core
- Optional Accessories: Safety Relay
- Model: SRC106
- Power Supply: 24V DC
- Output: Momentary 3 NO + Momentary 1 NC
- Reset: Automatic and Manual Reset
Note: The mat should not be connected directly to a power source. Overvoltage and current may cause internal burnout. A safety relay is recommended.
If you require multiple mats to be connected in series with one device, please contact customer service and we will provide a drawing for your confirmation.
For more specifications, please refer to the user manual and contact customer service.
FAQ
Q: How to contact you to buy?
A: You can contact our salesperson directly through WhatsApp or WeChat on the side of the webpage, and leave a message about your needs. The salesperson will reply to you as soon as possible; or leave a message in the Contact Us location and leave your email, and our salesperson will reply to you within 12 hours. It should be noted that try not to use Gmail's mailbox. When our corporate mailbox replies to you, it is easy to be blocked.
Safety mat model structure description
PSM4- A * B - C D E F - G - H
| A | B | C | D | E | F | G | H | |
|
Model |
Width | Length | Number of splices |
Description of size |
Color/material configuration |
Resistor configuration |
Cable length |
Controller |
|
PSM4 (default) |
L2:Safety pad width |
L1: safety pad length | L1:Not writing |
A: After installing the outer frame |
B: Black rubber surface (default) |
K: 4-core cable (default) |
3m: Standard configuration. Not writing (default) |
SRC: safety relay |
|
PSM6 |
2: Splice 2 pieces |
F: Net carpet size, additional frame require |
Y: Yellow PVC (pattern) |
KF: 2 sets of 2 cores |
6m: 6 meters cable |
|||
| PSM11 |
3: Splice 3 pieces |
P: Net carpet size, without outer frame |
H: Red PVC (pattern) |
R: With terminal resistor (8.2KΩ) |
8m: 8 meters cable |
|||
| 4: Splice 4 pieces |
S: Customized type |
| Safety mat basic parameters | ||||||
|
Adapt to detection range |
It is suitable for inspection personnel in general working conditions and cannot withstand vehicle crushing and heavy object impact. |
|||||
|
Recommended use occasions |
Suitable for safety protection in personnel operating areas; PSM4 - regular model, the hard board is more wear-resistant and durable, and is suitable for one side larger than 400mm (the default is PSM4 without instructions); PSM6 - Soft pad, more responsive, non-bendable, suitable for small sizes; PSM11 - soft padded, thinner, non-bendable, height restricted for narrow locations; |
|||||
|
Applicable industries |
Paper industry, electronics industry, automobile welding production lines, forging production lines, general industrial applications and automatic palletizers and other light and heavy industrial applications |
|||||
|
Dimensions (net mat) |
Customized width range: 200mm-1000mm Customized length range: 200mm-2000mm |
Surface Material-PSM4 |
PSM4-rubber (black particles for anti-skid) or PVC (red and yellow patterns for anti-skid); |
|||
|
Edge sealing form |
Yellow aluminum edge sealing |
Surface material-PSM6, PSM11 |
Hard sole |
|||
|
Maximum allowable load (8 hours) |
≤ 400N/cm2 |
Mechanical life PSM4 |
＞1,000,000 |
|||
|
Maximum humidity (23 degrees) |
95% (condensation) |
Mechanical life PSM6 |
＞800,000 |
|||
|
Ambient temperature (usage environment) |
-5℃ to 55℃ (no icing or condensation) |
Mechanical life PSM11 |
＞700,000 |
|||
|
Ambient temperature (storage environment) |
-10℃ to 60℃ |
Cable |
4-core*0.32² shielded cable, 3M standard (can be customized and lengthened) |
|||
|
Triggering force |
PSM4-Adult 35KG |
PSM6/11-Adult 20KG |
Output type |
2NO(passive normally open) |
||
|
Protection level |
IP65 |
Series connection |
Series connection of less than 5/6 blocks is allowed (or no more than 4-5 square meters) |
|||
|
Thickness |
PSM4-14mm |
PSM6-15mm |
PSM11-11mm |
Controller maximum voltage |
DC24V (using 0V control) |
|
|
Response time |
＜30ms |
Switching current\voltage |
Max.100mA \5V |
|||
|
Weight |
About 20kg/m² |
Allowed single block area |
1.5m² |
|||
|
Conform to Standard application |
The non-isolated safety protection system composed of safety mat and SRC106 safety relay meets the following standards.EN1760-1 ISO13856-2 EN62061 EN ISO13849-1 EN60204-1 EN/IEC 61496-1 |
|||||
