Parameter

CYNDAR

Product Advantages

Scanning Range/Reflection

1) Operating angle: 280°

2) Anti-glare <10000lux

3) Detection range: 0.1-50M

4) Working lights: power indicator, status indicator

5) Output port: Ethernet output

6) Anti-fouling grade: IP67

Software Diagram

Applications

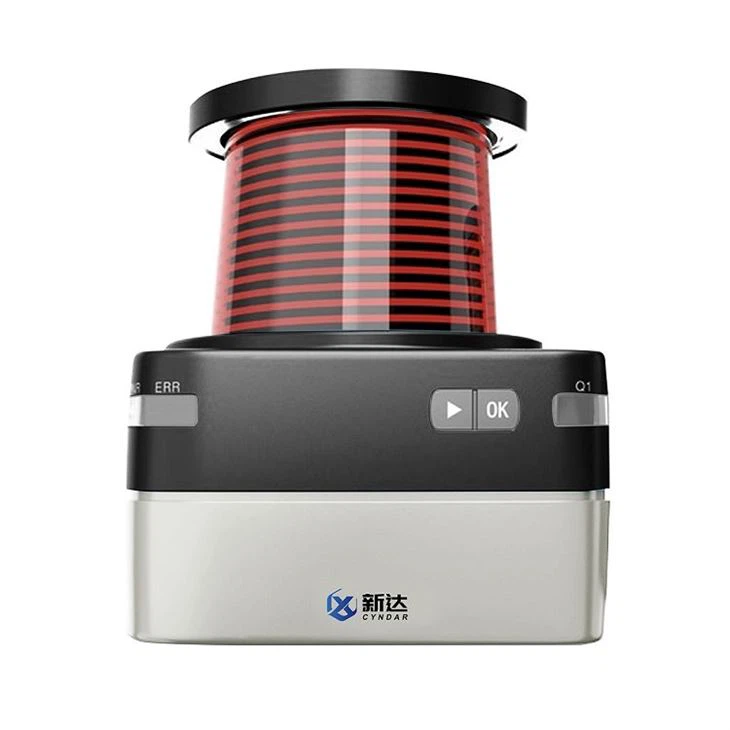

The XD-TOF-50H series laser radar uses mature products and is equipped with an SDK package for secondary development. Through the secondary development and integration of software, video linkage monitoring of radar-detected targets can be achieved. Compared with conventional long-distance monitoring systems, this laser radar and video linkage system has the following advantages: First, the target detection speed is fast; second, multiple targets can be detected at the same time; third, it is less affected by meteorological conditions and has high detection accuracy; fourth, the system is fully digitalized, networked, intelligent, and information-based.

The main functions of the system include: detection and monitoring of targets (people, vehicles, ships) within a range of 50m; continuous detection day and night; tracking of designated target motion trajectories; and target map marking.

Case: Port Automated Guided Vehicle (AGV) Navigation System
Scenario Description
During the cargo transportation process at the port, the Automated Guided Vehicle (AGV) needs to drive and dock accurately in a complex environment to achieve efficient cargo transportation. The XD-TOF-50H LiDAR can provide AGV with accurate environmental perception and navigation information to ensure the safe and stable operation of AGV.

Application Method
The XD-TOF-50H LiDAR is installed on the AGV. The radar scans the surrounding environment of the AGV in real time to obtain the distance and position information of surrounding objects. The AGV control system builds a map based on the data collected by the radar, and calculates the current position and driving path of the AGV through an algorithm. During driving, the radar continuously monitors changes in the surrounding environment and adjusts the driving path of the AGV in time to avoid obstacles. At the same time, the radar angle resolution can be selected as 0.08°/0.16°/0.32°, which can be adjusted according to actual needs to meet different navigation accuracy requirements.

Effect advantages
Fast response speed: The radar startup time is less than 20 seconds, and it can start working in a short time, providing support for the rapid startup and operation of AGV.
Long life and stable operation: The radar has a working life of up to 5 years (motor life), which can ensure stable and reliable operation during long-term use and reduce transportation interruptions caused by equipment failure.

FAQ

1) Are you a factory?

We are factory.

2) How long have you been in the lidar industry?

Our company has 7 years of experience in laser scanners.

3) Can you propose a solution based on the customer's problem?

Provide professional advice based on customer and industry information.

4) About delivery and payment deadline

Shipped within 3 days after payment.

5) How do we buy laser scanners from your company?

You can contact us via email, whatsapp, WeChat, or phone, and we will reply to you within 12 hours.
