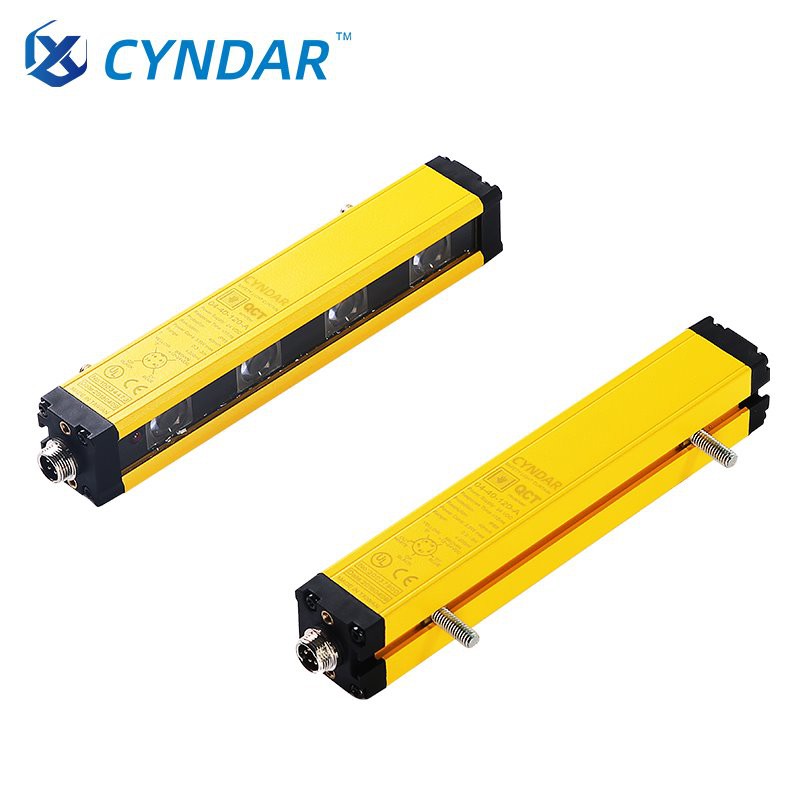

The QCT safety light curtain device is easy to wire and easy to install: independent external jack connection method, which is different from the built-in wiring method used by other similar products to prevent the product from burning out due to wiring errors during the installation process

Safety light curtain sensor technical parameters

Connection：Circular aeronautical socket with special connection cable,4 cores wire for transmitter, 5 cores wire for receiver

Indication lights：Transmitter: Power supply indicates red,

Receiver: Output indicates green, shading: the light indicates red

Ambient light：Natural light: receiving surface 3000Lx; Sunlight: receiving surface 10000Lx

Power Supply：DC12/24V   AC110—220V (relay output)

Housing Material：Aluminium alloy, End Cover: ABS reinforced nylon

Output Status：All optic axis turn ON once powered (shows green)

Output：NPN\PNP, input current 500mA,voltage drop: less than1.5V, reverse polarity, short-circuit, overload protection

Safety light curtain selection diagram

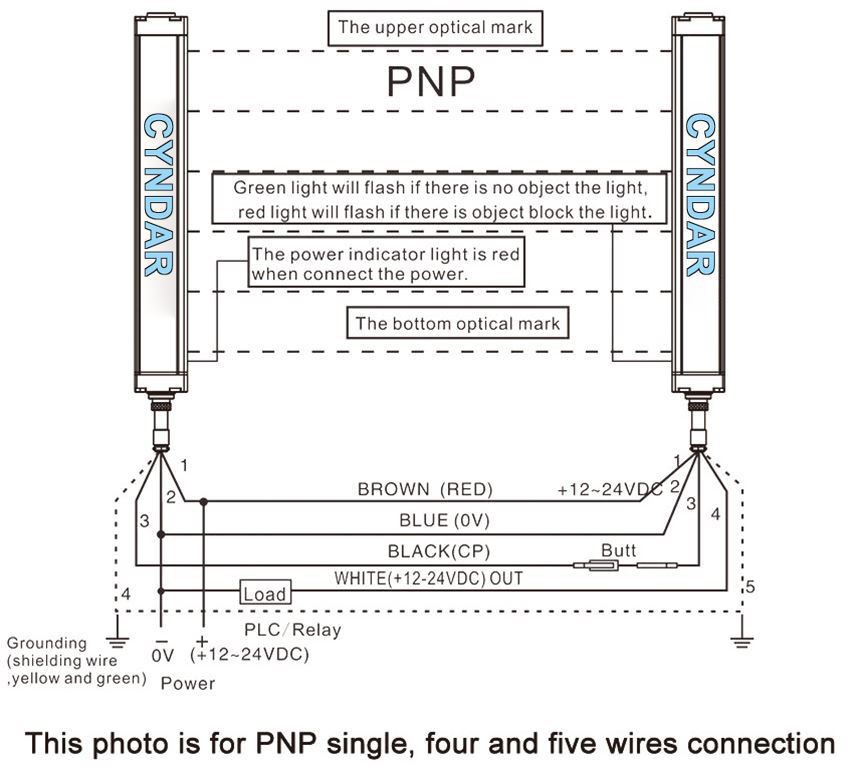

Light curtain sensor wiring diagram

Safety light curtain size chart

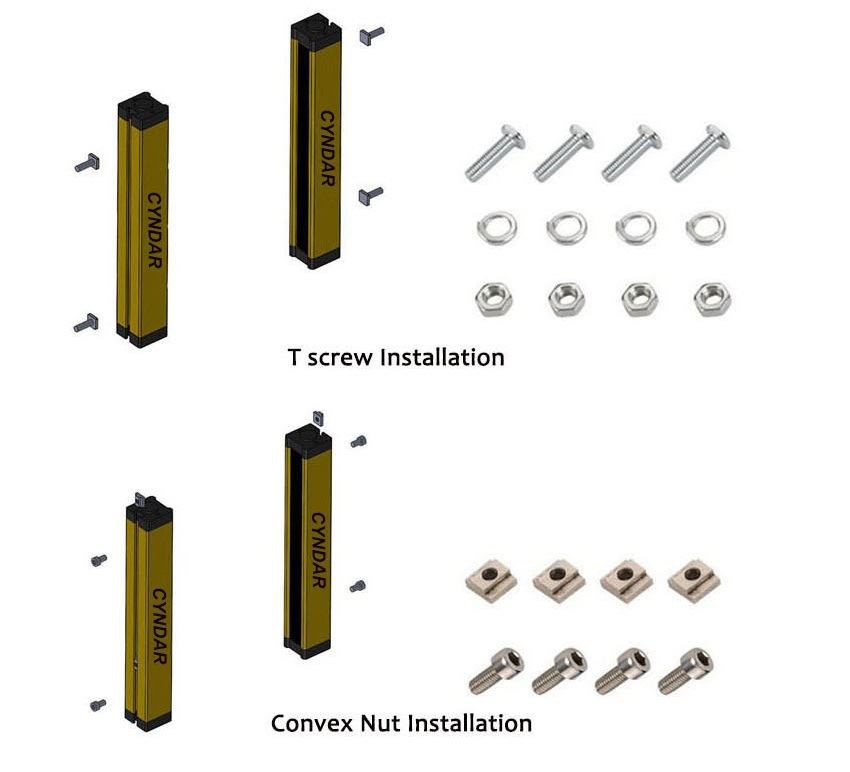

Safety light curtain installation diagram

FAQ

1. If the device voltage is 220V or 380V, how do I connect it to the safety curtain sensor?

A controller can be configured to reduce the voltage to DC12-24V;

2. What is the reaction speed of the safety curtain sensor?

Its reaction speed is 15ms;

3. What material is the light curtain safety system made up of?

Aluminum alloy shell with ABS nylon cover;

4. How about the quality of the machine safety sensor?

The quality of the laser scanner is very good, we have CE/RoHS/IP65 certification

5. What are the advantages of your safety grating sensors?

We are cheap and stable in quality, which can replace international brands
