Product Parameters
Model: XD-TOF-10H | Detection range @90% reflectivity: 10m |
Distance measuring accuracy: ±2.9cm | Scanning range: 272° |
Point cloud data merger: 1/2/4/8 points | Scanning frame rate: 10-30Hz |
Minimum resolution: 0.32° (fixed) | Power supply voltage: DC 12 V-24 V |
Laser light source: 905 nm class I | Rated power consumption: 2W |
Data transmission interface: Ethernet100BASE-TX | Starting temperature: -10℃-55℃ |
Storage temperature: -30℃-75℃ | Protection level: IP67 |
Size: 50*50*76mm | Weight: 148g (without cable) |
Laser scanner for safety protection
Features
* 20-length detection distance
* Environment illumination range: 50000 Lux
* Laser safety level: 905nm class I
* Convenient and fast multi-layer safety protection area setting
* 3 warning areas
* Nano optical dust cover reduces maintenance time
AGV navigation safety laser scanner
Features
Dimensions

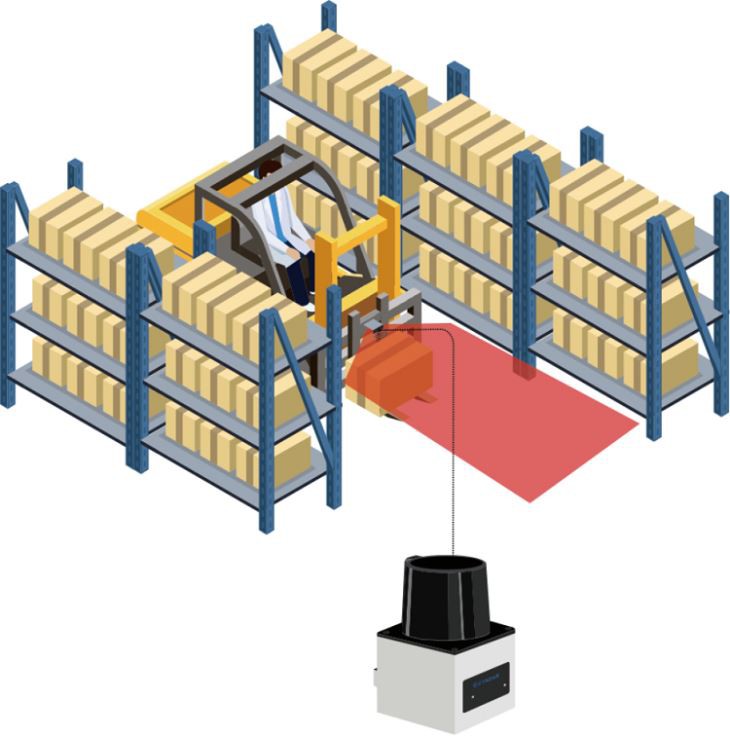

Protect people in narrow aisle warehouses
Between the forklift and the frame, when the forklift is driving at low speed without load, and when turning the steering wheel, the minimum distance between the outermost and innermost sides of the car body and the center of the turn cannot reach 50 cm. For a narrow aisle, use a lidar system. Prevent the forklift from colliding with people. Safety laser scanner with CYNDAR
Inspection is the best ideal solution, with a safety inspection range of up to 9 m.
