Product Parameters
|
Model: XD-TOF-10H |
Detection range @90% reflectivity: 10m |
|
Distance measuring accuracy: ±2.9cm |
Scanning range: 272° |
|
Point cloud data merger: 1/2/4/8 points |
Scanning frame rate: 10-30Hz |
|
Minimum resolution: 0.32° (fixed) |
Power supply voltage: DC 12 V-24 V |
|
Laser light source: 905 nm class I |
Rated power consumption: 2W |
|
Data transmission interface: Ethernet100BASE-TX |
Starting temperature: -10℃-55℃ |
|
Storage temperature: -30℃-75℃ |
Protection level: IP67 |
|
Size: 50*50*76mm |
Weight: 148g (without cable) |
Features
* Based on TOF measurement technology,
* Angular resolution reaches 0.08°, improving the recognition rate of small objects
* Multiple area group settings (quick configuration, fast loading)
* Automatic monitoring environment
* USB interface, Ethernet 100BASE-TX
Automatic guided vehicle laser scanner
Features

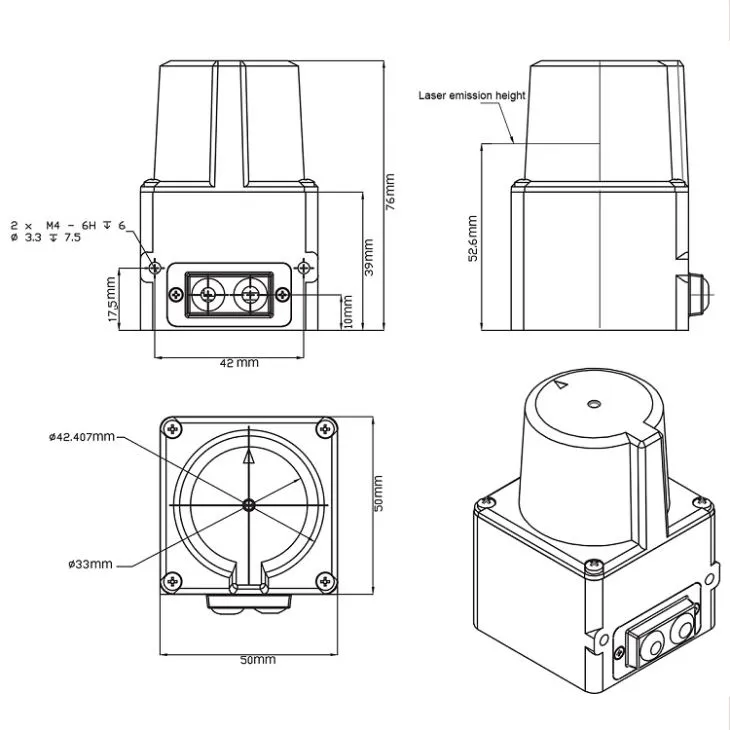

Dimensions
AGV navigation obstacle avoidance
AGV's main guidance and navigation methods, in order to save costs and improve economic efficiency, advanced production methods such as flexible manufacturing systems and automated storage systems are widely used. They use highly intelligent systems as the decision center, and use robots and automated three-dimensional warehouses. , Unmanned vehicles and other main equipment. Among them, the unmanned handling equipment is marked by an automatic guided car. It integrates advanced technologies such as electronic computer science, image signal processing, and automatic control. It is a key equipment for modern logistics systems and flexible production organization systems. Our 10HM can be an AGV Perform computational navigation and obstacle avoidance.
In logistics warehouses, AGVs equipped with laser scanners possess unique environmental awareness capabilities. Their scanning range covers a 270° angle, enabling real-time monitoring of people and obstacles within a 20-meter radius. Upon detecting an obstruction in their path, the AGV quickly activates appropriate safety mechanisms, slowing down or even stopping, effectively ensuring smooth and safe movement within densely packed shelving areas. Furthermore, with a high-speed scanning frequency of 50Hz, the AGV easily adapts to the ever-changing dynamic environment of the warehouse.
Social Responsibility and Value
As an industrial safety solutions provider, the company is committed to reducing production accidents and ensuring worker safety through technological innovation. Its products not only improve production efficiency but also provide key support for safety standardization in the manufacturing industry.
