Parameter
|
Number: XD-TOF-20DP |
Minimum angular resolution: 0.1°/0.3° |
|
Power consumption (heating module off) <8.4W |
Measurement error: ±30 mm |
|
Light resistance<15,000 lux |
Start time≤20ms |
|
Application angle: 270° |
Heating module power supply voltage: 24V±20% |
|
Scanning frame rate: 15 Hz/30 Hz |
Working temperature: –10 °C ~ +55°C |
|
Protection distance: (when the reflectance is 90%) 20m |
Interface: Ethernet |
Product Advantages
Scanning Range/Reflection
·270° working area, angular resolution 0.1°/0.3°
· Precision dust cover, reduced maintenance
· Anti-light interference <15,000 lux
· USB\IO
· Stable application environment –10 °C ~ +55°C
· Red warning area: 3
· TOF technology
Software Diagram
Product Size

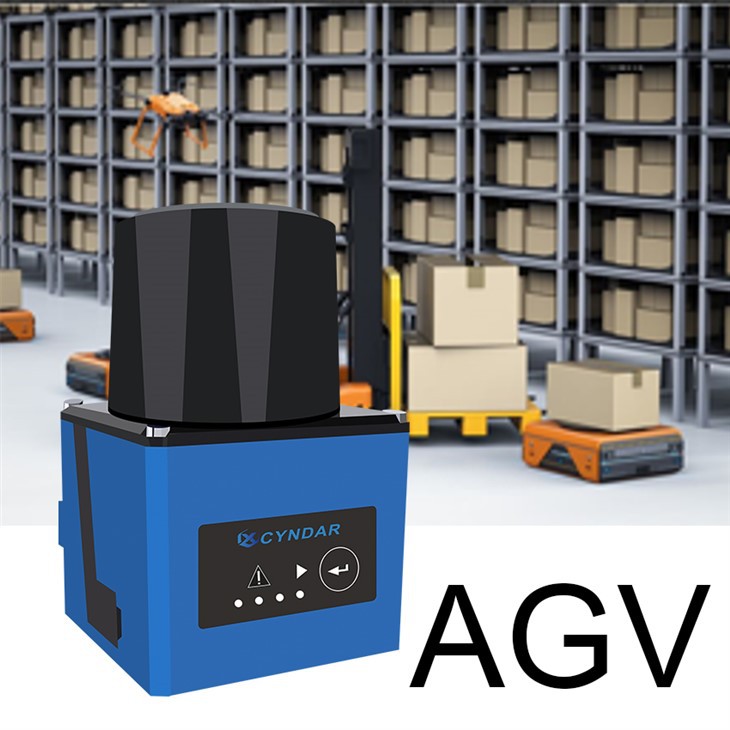

This LiDAR is suitable for obstacle avoidance and blind spot compensation of mobile robots (AMR, AGV), with a detection distance of more than 20 meters (measurement error is only 30 mm); equipped with dedicated safety design software, 3 programmable warning areas, and supports quadrilateral scanning.
Application Field
Suitable for application needs in different scenarios such as robots, security monitoring, industrial automation, logistics, etc.
Applications
XD-TOF-Laser Scanners for Material Handling and Packaging Machinery
During material handling and packaging, machines may need to perform fast or high-powered operations. The application of safety lidar can ensure that in emergency situations, such as when the operator's hands or body parts accidentally enter the machine's motion area, the machine can be stopped quickly to avoid injury.
