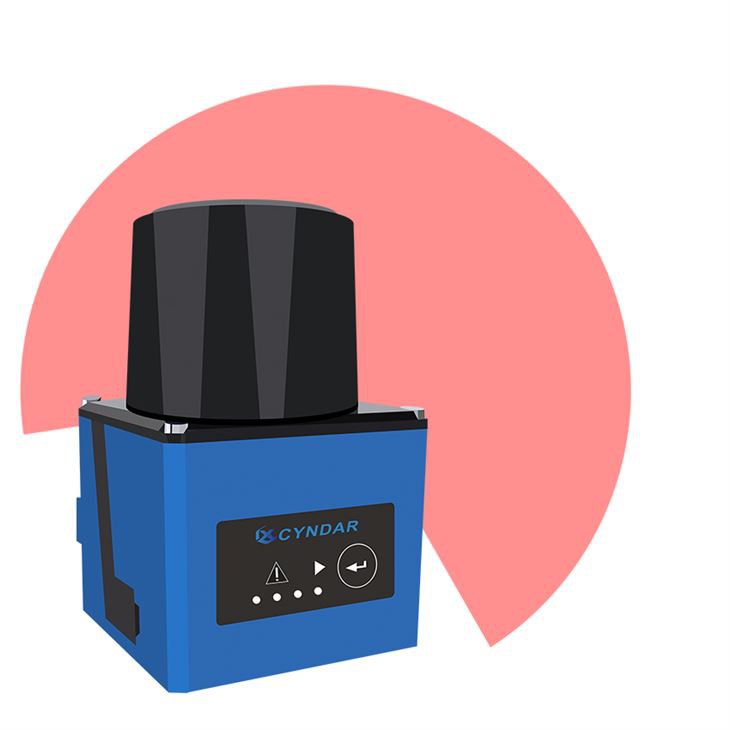

CYNDAR safety laser scanner is the perfect crystallization of advanced proprietary technology, experience and best performance. Whether it is mobile or fixed, laser scanner area protection or channel monitoring, indoor or outdoor-this comprehensive product portfolio can provide economical and satisfactory solutions for any requirement. The compact device scans its surroundings and measures the distance based on the time-of-flight measurement principle. Generate a two-dimensional monitoring result of an arbitrarily determined protected area through TOF.
Introduction
1. Working area: 0.05m-5m
2. Input: GND/NC*4
3. Signal output holding time: 100ms-10000ms (adjustable) typical value 330ms
4. Automatic learning
5. Angular resolution 0.1°/0.3°
6. The switch provides DC30V 50mA driving force
Product Parameters
Model: XD-TOF-05D | Working area: 0.05m-5m |
Electrical connection: DB15MALE | Power supply: DC9V-28V |
Weight: 150g without cable | Length*Width*Height: 50mm*50mm*76mm |
Recognizable object shape: almost any shape | Measurement error: ±30mm |
USB:Micro | Input: GND/NC*4 |
Operating environment temperature: -10℃~55℃ | Placement temperature: -30℃~75℃ |
Product Advantages
Application on CNC processing table and paper processing table
XT-TOF-05D 2D laser scanner is used to detect curved paper or inclined parts. The digital switch signal sends a signal to the detected object to avoid collision with the tool. It is an alternative solution for detecting bumps, so that the uniformity of the paper can be monitored.
