Download the product brochure to view all parameters
The model is subject to the product brochure
The perfect self-check function of CCT safety light curtain sensor: MCU development technology, real-time monitoring of the electronic circuit in the sensor, to ensure that no wrong signal is sent to the controlled mechanical equipment (for example: the light source is not synchronized), the light source intensity is insufficient, the light source drive circuit is wrong , Main control circuit error, cable error, receiving drive circuit error, main control circuit error, CPU error)
Safety light curtain sensor technical parameters
Connection：Circular aeronautical socket with special connection cable,4 cores wire for transmitter, 5 cores wire for receiver
Indication lights：Transmitter: Power supply indicates red,
Receiver: Output indicates green, shading: the light indicates red
Ambient light：Natural light: receiving surface 3000Lx; Sunlight: receiving surface 10000Lx
Power Supply：DC12/24V AC110—220V (relay output)
Housing Material：Aluminium alloy, End Cover: ABS reinforced nylon
Output Status：All optic axis turn ON once powered (shows green)
Output：NPN\PNP, input current 500mA,voltage drop: less than1.5V, reverse polarity, short-circuit, overload protection
Safety light curtain selection diagram
Light curtain sensor wiring diagram
Safety light curtain size chart

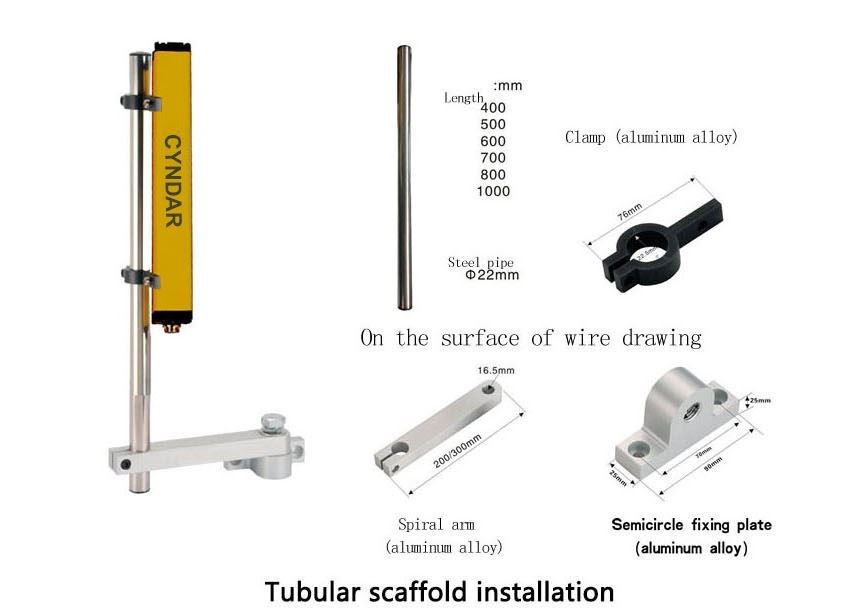

Safety light curtain installation diagram
FAQ:
1. Can the beams of light cover only a certain part of the eyes?
Yes, but it must be fixed.
2.Is the security light curtain（safety optical sensor） customizable?
Yes
3. If a device needs two sets of industrial safety light curtains, can it be used at the same time?
Yes, a double sided controller can be configured to control two sets of security light curtains simultaneously.
4. What is your sample policy? To
If it is in stock, we can provide samples, but the customer must pay the sample fee and courier fee. To
5. Are regional agents allowed?
Yes, our global investment agent
