Download the product brochure to view all parameters
The model is subject to the product brochure
CCT safety light curtain sensor has powerful functions, perfect self-checking, easy to use, strong earthquake resistance and various installation methods. The safety curtain sensor can be applied to a variety of high-risk equipment, and can protect the safety of operators and equipment in harsh environments. With dual loop external control
Safety light curtain sensor technical parameters
Connection：Circular aeronautical socket with special connection cable,4 cores wire for transmitter, 5 cores wire for receiver
Indication lights：Transmitter: Power supply indicates red,
Receiver: Output indicates green, shading: the light indicates red
Ambient light：Natural light: receiving surface 3000Lx; Sunlight: receiving surface 10000Lx
Power Supply：DC12/24V AC110—220V (relay output)
Housing Material：Aluminium alloy, End Cover: ABS reinforced nylon
Output Status：All optic axis turn ON once powered (shows green)
Output：NPN\PNP, input current 500mA,voltage drop: less than1.5V, reverse polarity, short-circuit, overload protection
Safety light curtain selection diagram

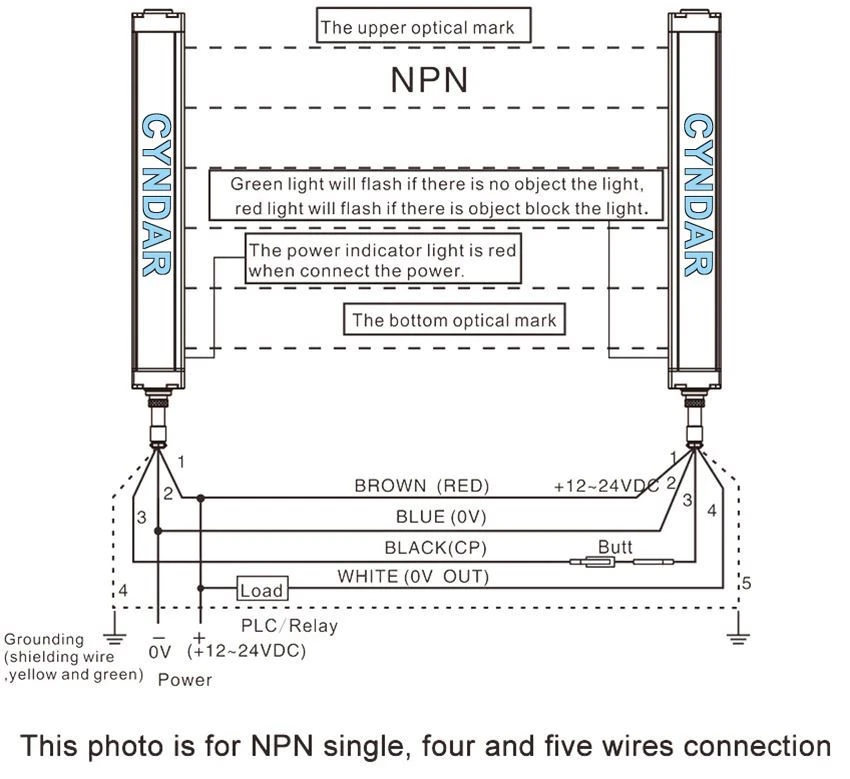

Light curtain sensor wiring diagram
Safety light curtain size chart
Safety light curtain installation diagram
FAQ:
1. Are you a brand of your own?
Yes, our brand name is CYNDAR, has patent authentication, and also provides OEM services.
2. Do you have safety grade certification for your infrared safety light curtain?
We reach the safety level 4 of TUV.
3. Can you provide the size and 3D drawings technical document of the safety light beam sensor?
Yes, we can provide customers all series of size and 3D drawings.
4. What is your sample terms?
We can send samples for you, but sample fees and freight will be charged.
5. When can the delivery be made?
Usually, it takes 2-5 working days for samples to be delivered after receiving the deposit.
