Download the product brochure to view all parameters-the model is subject to the product brochure

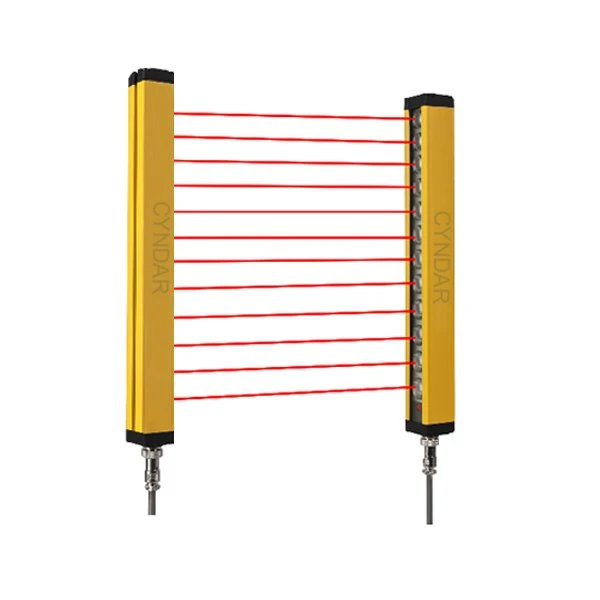

The CCT safety light curtain sensor has a blind zone filtering function: when an object slowly passes through the light curtain, the grating always outputs a stable disconnection signal, will not start the machine by mistake, and the production is safer and more reliable.
Safety light curtain sensor technical parameters
Connection：Circular aeronautical socket with special connection cable,4 cores wire for transmitter, 5 cores wire for receiver
Indication lights：Transmitter: Power supply indicates red,
Receiver: Output indicates green, shading: the light indicates red
Ambient light：Natural light: receiving surface 3000Lx; Sunlight: receiving surface 10000Lx
Power Supply：DC12/24V AC110—220V (relay output)
Housing Material：Aluminium alloy, End Cover: ABS reinforced nylon
Output Status：All optic axis turn ON once powered (shows green)
Output：NPN\PNP, input current 500mA,voltage drop: less than1.5V, reverse polarity, short-circuit, overload protection
Safety light curtain selection diagram

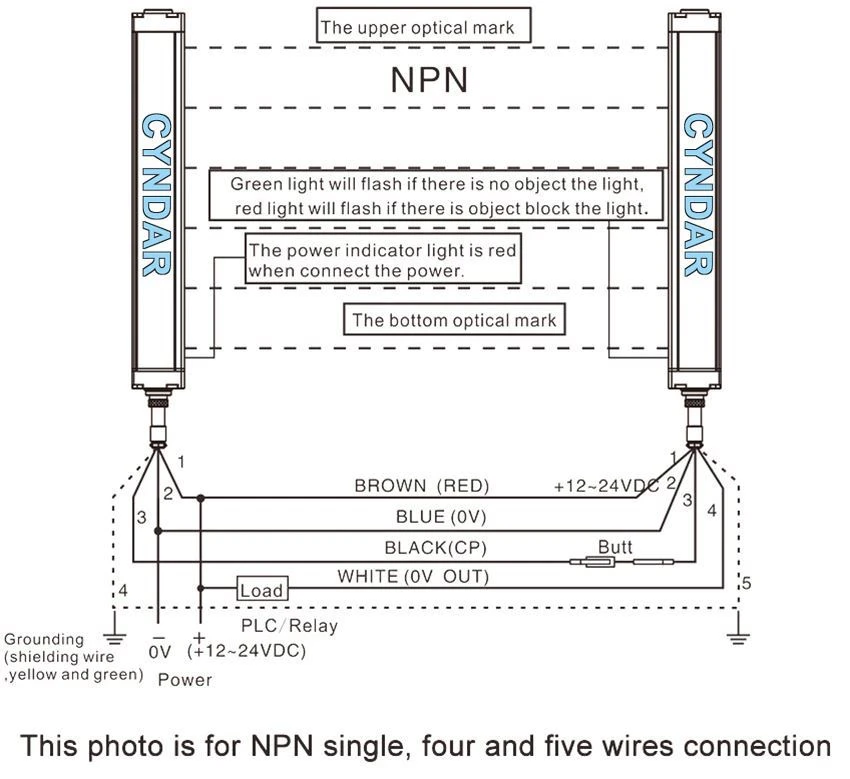

Light curtain sensor wiring diagram
Safety light curtain size chart
Safety light curtain installation diagram
FAQ:
1.How many beams are there in yellow safety grating QC series?
The QC series has a maximum of 72 beams.
2. Is the data line of QC series all the same?
No, usually the transmitter's data lines are 4 cores, but less than 32 beams, the receiver's data line is 5 cores, and the receiver between 32 beams to 72 beams is 6 cores.
3. How many kinds of output are there in this series?
There are 4 kinds of output:
1) NPN NC (default factory mode) 2) NPN NO 3) PNP NC 4) PNP NO;
4. What are your packaging conditions? To
We have professional packaging. The color box is packed with foam plastic or cushioning material to ensure that the packaging does not damage the radar.
5. What are your payment terms? To
Customers pay in full, and we ship on schedule.
