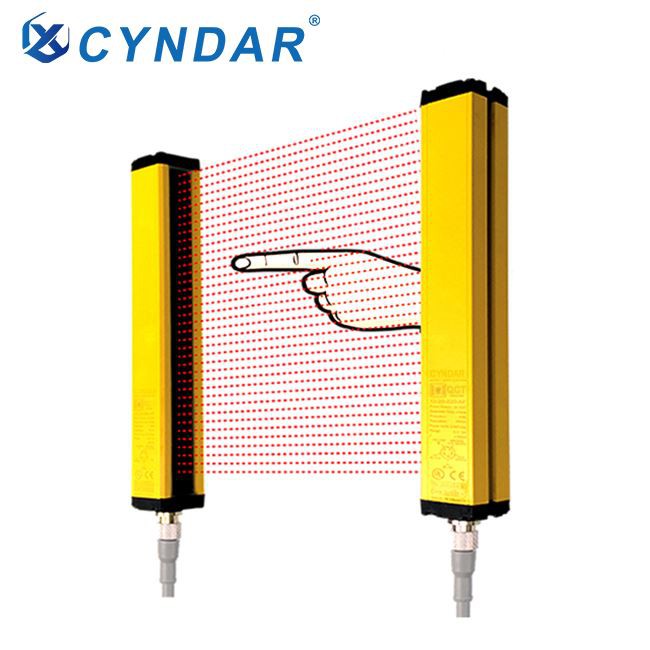

Safety Light Screen for injection Machines

● For the press where the slider cannot be stopped at any position of the stroke, the top dead point protection can only be achieved in a single operation. That is, after the previous stroke, the next stroke has not been started yet. If the optoelectronic protective device is blocked The next trip cannot be started (must guarantee a sufficient safety distance). Light Curtain for Injection Machines Guarding for Punch Press Guarding

Send Inquiry

Chat Now

The new generation of safety light curtains is ideal for the protection of hazardous areas, entrances, and hazardous points. Intelligent and state-of-the-art technologies fast installation, and performing automation functions. The standardized connectivity and the compatible accessories for the entire product family reduce variant diversity. The required functions can be activated using the appropriate M12 system plug – without the need for softwar.

Technical Parameter
Protection Height	Distance of optic axis*(Qty of beam-1)	Reaction Time	≤15ms
Detection Range	30~3000mm, 30~6000mm	Interference of Light	10000Lux (Angle of incidence≥5°)
Type of Light Curtain	Through-beam	Protection Level	IP65
Appearance Dimension	30×30mm×Jmm (J is the length of transmitter /receiver)	Controller	QCA/QCA2
Light Source	Infrared LED	Current Consumption	≤200mA
Ambient Humidity	Operating:35~85%RH Saving:35~95%RH	Working Temperature	Operating:-10~+40℃(do not freeze), Saving:-25~+55℃
Connection	Circular aeronautical socket with special connection cable,4 cores wire for transmitter, 5 cores wire for receiver
Indication lights	Transmitter: Power supply indicates red, Receiver: Output indicates green, shading: the light indicates red
Ambient light	Natural light: receiving surface 3000Lx; Sunlight: receiving surface 10000Lx
Power Supply	DC12/24V AC110-220V (relay output)
Housing Material	Aluminium alloy,end cover:ABS reinforced nylon
Output Status	All optic axis turn ON once powered (shows green)
Output	NPN/PNP, input current 500mA,voltage drop: less than1.5V, reverse polarity, short-circuit, overload protection
