Infrared vehicle separator (vehicle separation light curtain) application

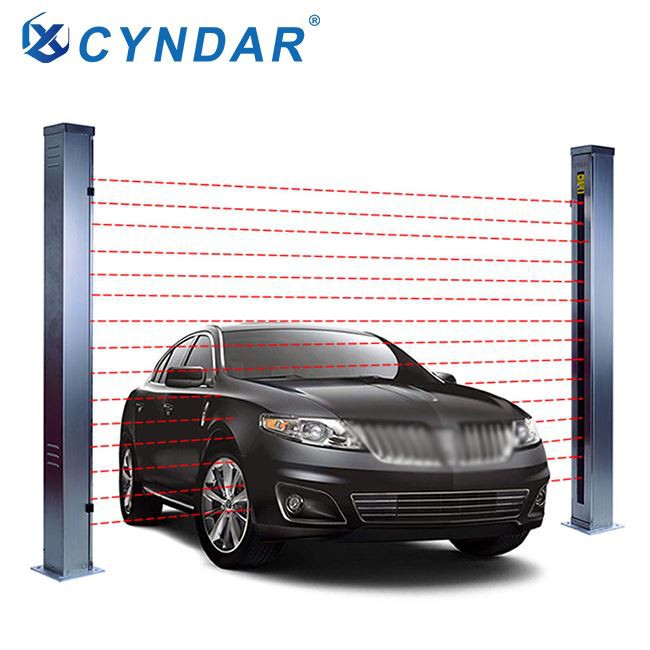

CYNDAR's QSM series vehicle separation light curtain, also known as safety light curtain sensor, is a special application to realize no manual toll at highway toll stations. The light curtain sensor is equipped with a solid shell, which is waterproof and dustproof. It also has the function of temperature adjustment. Affected by high or low temperature, it can work stably and effectively in harsh environments.
Generally speaking, CYNDAR’s QSM safety light barrier sensor’s vehicle separation light curtain is mostly used outdoors. The safety light sensor needs to be rain-proof, anti-sunlight, anti-interference, and high-temperature and low-temperature resistant, so the shell is generally It is made of stainless steel or cold-rolled steel plate material, built-in electric glass, temperature controller, humidity controller, can be waterproof, dustproof and temperature adjustment function, no matter in high temperature or low temperature environment, it will not be affected. Laser scanner senso can be used in harsh environments. Stable and effective work in the environment, the vehicle separator has a special protective cover, which can be made into a sturdy aluminum profile, so as to ensure that the vehicle separator is reliable in the harsh outdoor environment.
safety light curtain sensor working:
The accuracy of the vehicle safety light curtain/safety grating of professional manufacturers is divided into 10mm, 14mm, 20mm, 25mm, 30mm, 40mm, 80mm; the beam distance can be very long, even long-distance buses and buses can detect or measure ; The detection range of the light curtain sensor of the highway automatic separator can choose two options: A: 0.-5M; B: 0-10M; C: 0-30M.

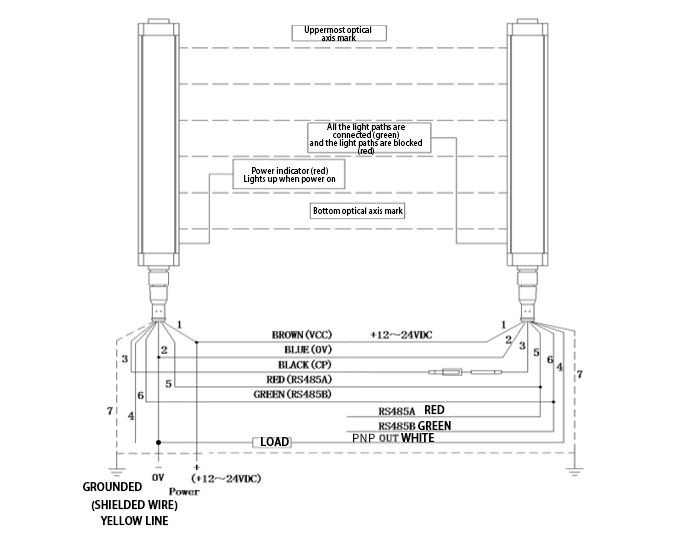

The road automatic separator light curtain sensor has 3 kinds of output: 1) NPN normally closed/normally open 2) NPN normally closed/normally open 3) RS485.
TECHNICAL PARAMETER | |
Heating Power Supply | 24v 10A |
Height of Light Curtain | 50mm-2840mm |
Main Thermostat | Disk Encapsulation Closed temperature: 4 ℃ Disconnection temperature: 29 ℃ |
Standby Thermostat | Closed temperature: 55 ℃ Disconnection temperature: 36 ℃ |
Beam Pitch | 10/14/20/25/30/40/80mm (customizable) |
Humidity Switch | Mechanical nylon membrane trigger switch Relative Humidity: 20-80% |
Indication Light | The front red LED lamp shines when the heating element turns on |
Structure | Shell: stainless steel or aluminium alloy, window: heating glass |
Working Temperature | Operating:-20~+70℃(do not freeze), |
Protection Level | NEMA 3R (IEC IP54) |
Application scope of safety light curtain standards:

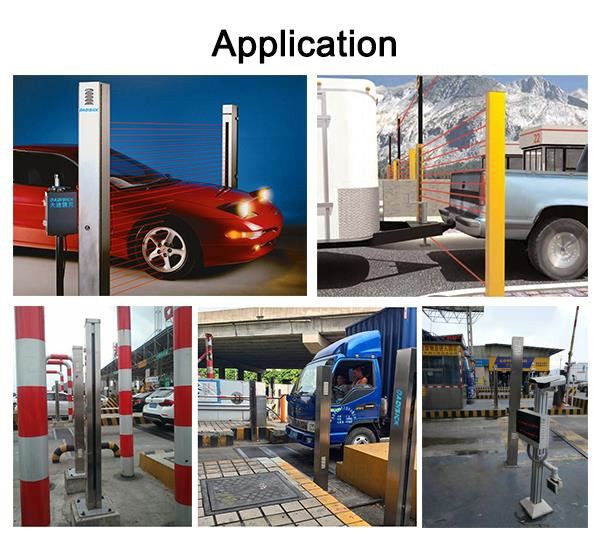

CYNDAR's QSM vehicle separator is mainly used for: general highway toll stations, non-stop toll collection system (ETC), automatic vehicle classification system (AVC), highway weight toll collection system (WIM), fixed overrun detection station, customs vehicle management System etc.
For the use of light curtain vehicle separator, choose Xinda, which is sold directly from the factory, with good quality, low price and good service.
FAQ:
Q1: What are your packaging conditions?
Answer: We have professional packaging. The color box is packed with foam plastic or air cushion
Q2. What is the best price?
The price will vary with your order quantity. As a manufacturer, we will provide competitive prices.
Q3. When is the delivery?
Answer: 1) Sample 1-5 days 2) Mass production 7-15 days.
Q4. How many people are in your factory?
Answer: There are 80 people in our factory
