Introduction
-Small measuring spot to accurately detect small objects
-Anti-lighting<30000lux
-Adopt safety protection laser, meet the standard
-Minimum area protection can be set
-Various installation methods, easy to use
-For users to secondary development
-Background cropping
Product Parameters
Model: XD-TOF-05D | Ambient light resistance: ≤50000lux |
Lamp: status indication*1 zone group indication*3 | Response time: 67ms-30000ms (adjustable) typical value 134ms |

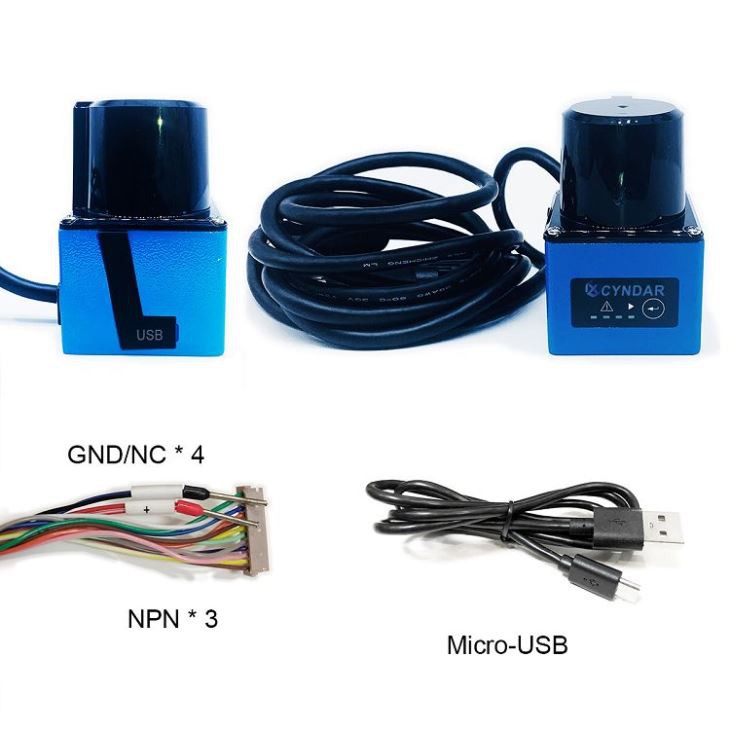

Switch output: NPN*3 equipment working status indication*1 | Shell color: blue |
Electrical connection: loose wire | Integrated rotation measurement error: ±30mm |
Switch drive: DC30V 50mA | Working energy consumption: 2W |
Anti-fluctuation: 10-55Hz, amplitude 0.75mm, XYZ triaxial, 2 hours per axis | |
Product Advantages

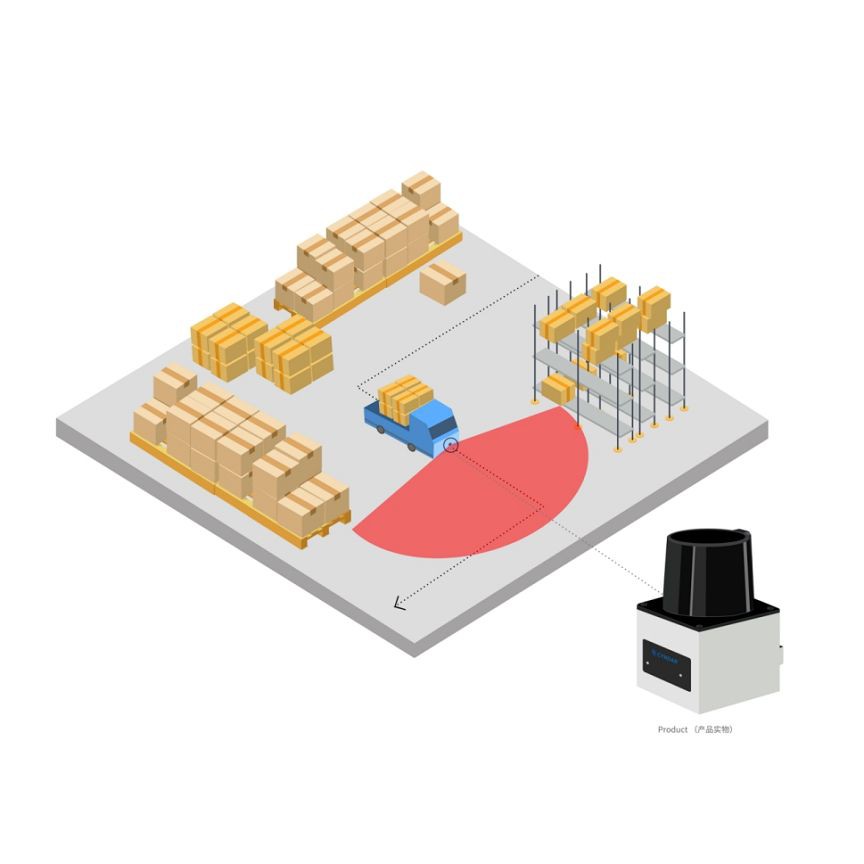

However, with the advancement of technology, especially the origin of the intelligent era, the introduction of concepts such as intelligent manufacturing and Industry 4.0, a variety of technologies that can be autonomously moved by vehicles and robots (including path planning, precise positioning, precise docking, intelligent scheduling, Intelligent obstacle avoidance, etc.), the automation of warehousing and logistics has become the general trend, and production has shifted from a single fixed way to a flexible production line with strong adaptability. AGV Obstacle Avoidance Navigation 05D can effectively assist the logistics industry to enter autonomous, intelligent, three kinds of signals, multiple regional groups, and can navigate the track and avoid obstacles.
