Introduction
· Very strong obstacle avoidance function, up to 5m
· With self-learning function, scan the surrounding environment and construct regional groups
· Multiple interfaces: Ethernet, 1 switch
· Three kinds of signals, can set early warning, low speed, stop
Product Parameters

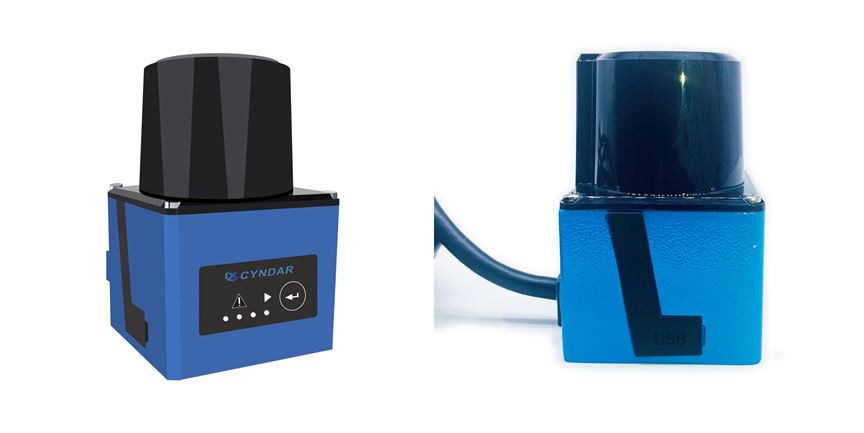

Model: XD-TOF-05D | Ambient light resistance: ≤50000lux |
Lamp: status indication*1 zone group indication*3 | Response time: 67ms-30000ms (adjustable) typical value 134ms |
Switch output: NPN*3 equipment working status indication*1 | Shell color: blue |
Electrical connection: loose wire | Integrated rotation measurement error: ±30mm |
Switch drive: DC30V 50mA | Working energy consumption: 2W |
Anti-fluctuation: 10-55Hz, amplitude 0.75mm, XYZ triaxial, 2 hours per axis | |
Product Advantages
Hazardous area protection for tire equipment production
A rubber machine needs to protect the safety of the lidar scanner TOF-05D/ 10HM/ 10H during the use of a rubber machine. Using this raw material processing machine, there are many potential safety hazards. This is to install a safety scanner to protect the safety of the person. Through the overlapping of the two protection areas in front of the machine, the movement of the automatic operation unit is stopped by the outside area, and the movement of the upper part of the mold is stopped by the inside protection area. Since this allows each process to operate independently of each other, productivity is thus improved.
