Product Parameters
|
Product: XD-TOF-10H |
Detection accuracy @90% reflectivity: 1*10m |
|
Ranging accuracy: ±30mm |
Scanning range: 270° |
|
Point distance data merge: 1/2/4/8 points |
Scanning frame rate: 10-30Hz |
|
Minimum resolution: 0.32° (fixed) |
Rated voltage: DC 12 V-24 V |
|
Laser light source: 905 nm class I |
Power consumption: 2W |
|
Data transmission interface: Ethernet100BASE-TX |
Starting temperature: -12℃-53℃ |
|
Placement temperature: -30℃-75℃ |
Protection level: IP67 |
|
Shape: 50*50*76mm |
Weight: 0.148kg (body) |

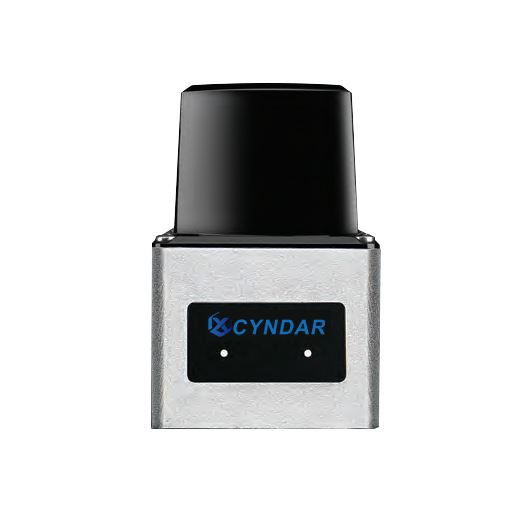

XD-TOF-10H series two-dimensional TOF obstacle avoidance radar. Products are mainly used for industrial/ commercial use.
Features
1. Ultra-high precision resolution 0.08°
2. Eye safety protection meets standards
3. Automatic learning
4. 3 signal warning areas, multiple settings
5.16 Regional Group Settings
6. Applicable under harsh industrial environment
Logistics navigation laser scanner
Professional safety laser scanner
Features
Dimensions
Use a laser scanner on the reach stacker to assist the driver.
With the development and progress of society, the professional division of labor and machinery is getting more and more detailed. The matching and connection of various professional equipment make the entire logistics system operate in an orderly manner and the efficiency is doubled. In specific work practices, forklifts There will be many effects on the efficiency of the entire logistics chain. When the reach stacker is working, the lidar scanner TOF-10H can help the stacker monitor the area behind it.
Automated Guided Vehicle (AGV) Obstacle Avoidance and Navigation
In logistics warehouses, AGVs equipped with laser scanners use a 270° scanning range to detect people or obstacles within a 20-meter radius in real time. When a path obstruction is detected, the vehicle immediately slows down or stops, ensuring safe navigation in densely packed racking areas. It also supports 50Hz high-speed scanning to adapt to dynamic environments.
Company Overview
GZ Cyndar Co., Ltd., established 10 years ago and registered at Room 401, No. 3 Qingxu Street, Tianhe District, Guangzhou, operates under the CYNDAR brand. It is a technology company specializing in optical, electrical, and mechanical technologies, with a core focus on sensor product manufacturing.
