Product Parameters

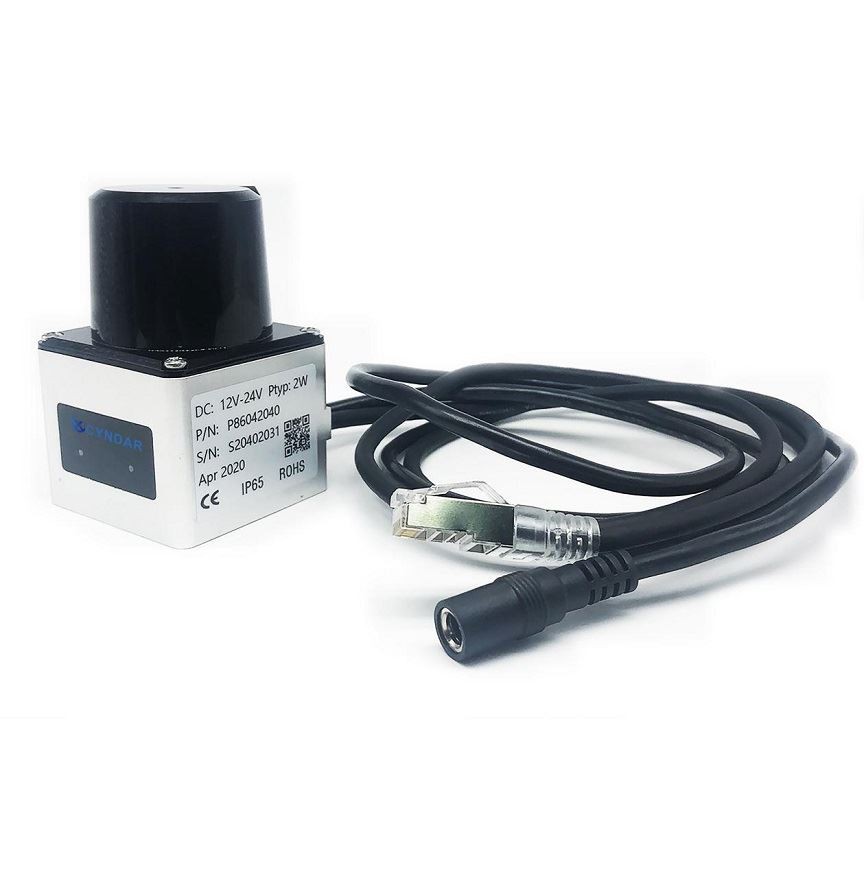

Product: XD-TOF-10H | Detection accuracy @90% reflectivity: 1*10m |
Ranging accuracy: ±30mm | Scanning range: 270° |
Point distance data merge: 1/2/4/8 points | Scanning frame rate: 10-30Hz |
Minimum resolution: 0.32° (fixed) | Rated voltage: DC 12 V-24 V |
Laser light source: 905 nm class I | Power consumption: 2W |
Data transmission interface: Ethernet100BASE-TX | Starting temperature: -12℃-53℃ |
Placement temperature: -30℃-75℃ | Protection level: IP67 |
Shape: 50*50*76mm | Weight: 0.148kg (body) |
Features
XD-TOF-10H radar newly researched safety gate, AGV, service robot autonomous obstacle avoidance and other fields.
1.1000 cm distance
2. Adopt human eye safety protection laser
3. 270°scanning, the smallest angle resolution can reach 0.08°
4. USB: Ethernet 100BASE-TX
5. Pause function, taking into account the production
AGV Safety Controller Sensor Lidar Radar
Laser scanner protection equipment
Features
Dimensions
AGV navigation obstacle avoidance
Unmanned logistics and transportation have spread all over the world, and the technologies are very mature and huge. Manpower can no longer support or even the workload will have many mistakes, which reduces the efficiency of transportation. With the improvement of automation, the production methods of traditional manufacturing industries have undergone profound changes. , Automatic obstacle avoidance TOF-10H is a laser sensor with a distance of 10 meters, high accuracy, scanning up to 270 °.
