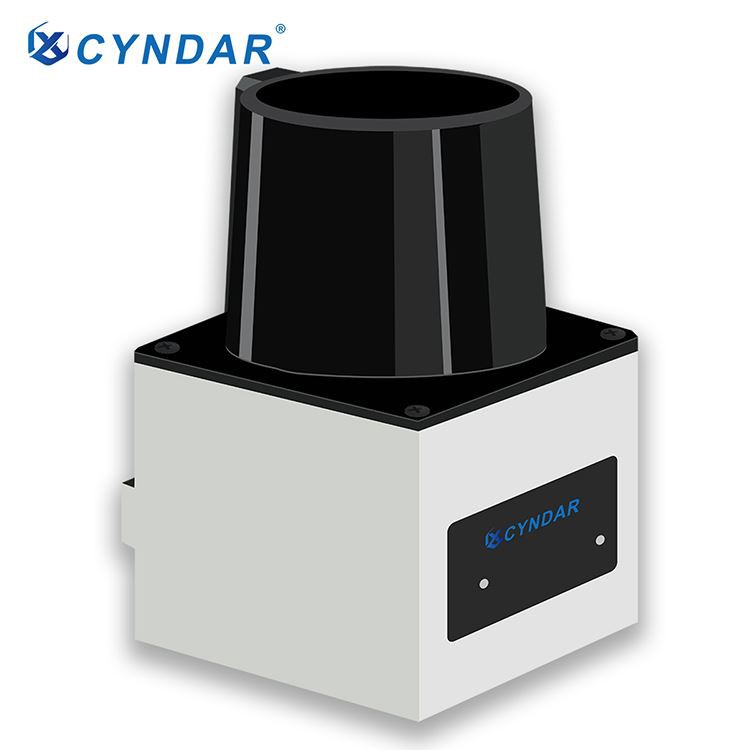

High precision safety laser scanner
Features
1) Integrated rotation design, plane error ±0.08°
2) Ambient light <50000lux
3) Starting time: <10s
4) Vibration test: 50-200Hz, 196m/s² (20G), scanning speed 2min/x cycle, XYZ triaxial, 2 hours per axis
5) Support remote maintenance and upgrade
Product Parameters
Model: XD-TOF-20H | Detection range @90% reflectivity: 1*20m |
Distance measuring accuracy: ±30mm | Scanning range: 270° |
Point cloud data merger: 1/2/4/8 points | Scanning frame rate: 10-30Hz |
Minimum resolution: 0.08° | Power supply voltage: DC 12 V-24 V |
Laser light source: 905 nm class I | Power consumption: 2W |
Data transmission interface: 50000Lux | Working temperature: -10℃-55℃ |
Storage temperature: -30℃-75℃ | Protection level: IP67 |

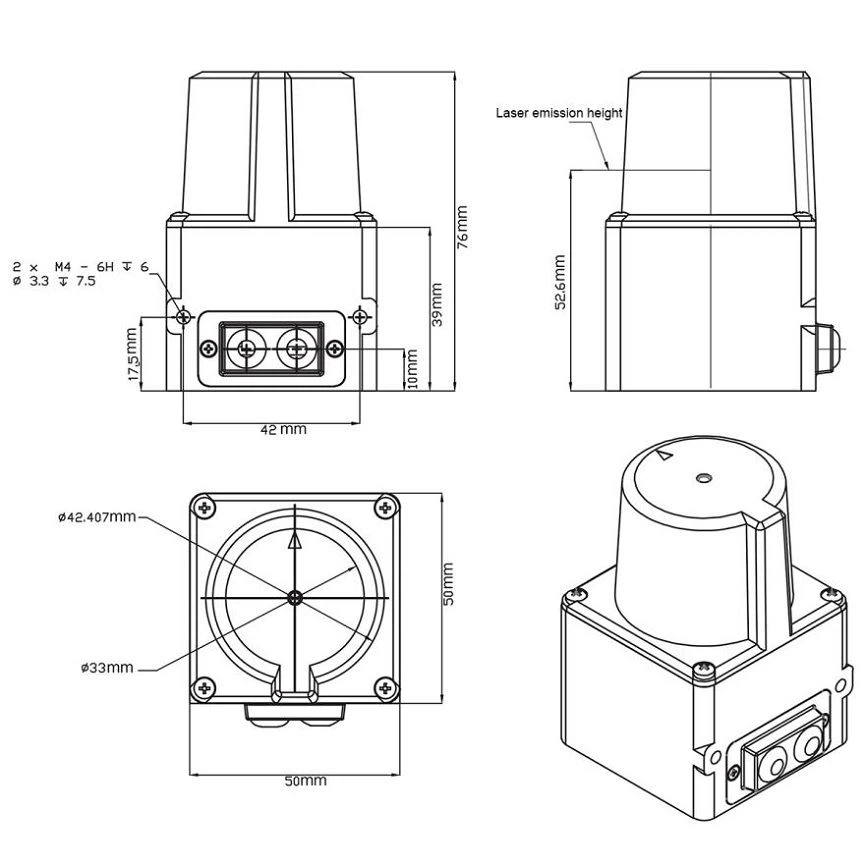

Size: 50*50*76mm | Weight: 148g (without cable) |

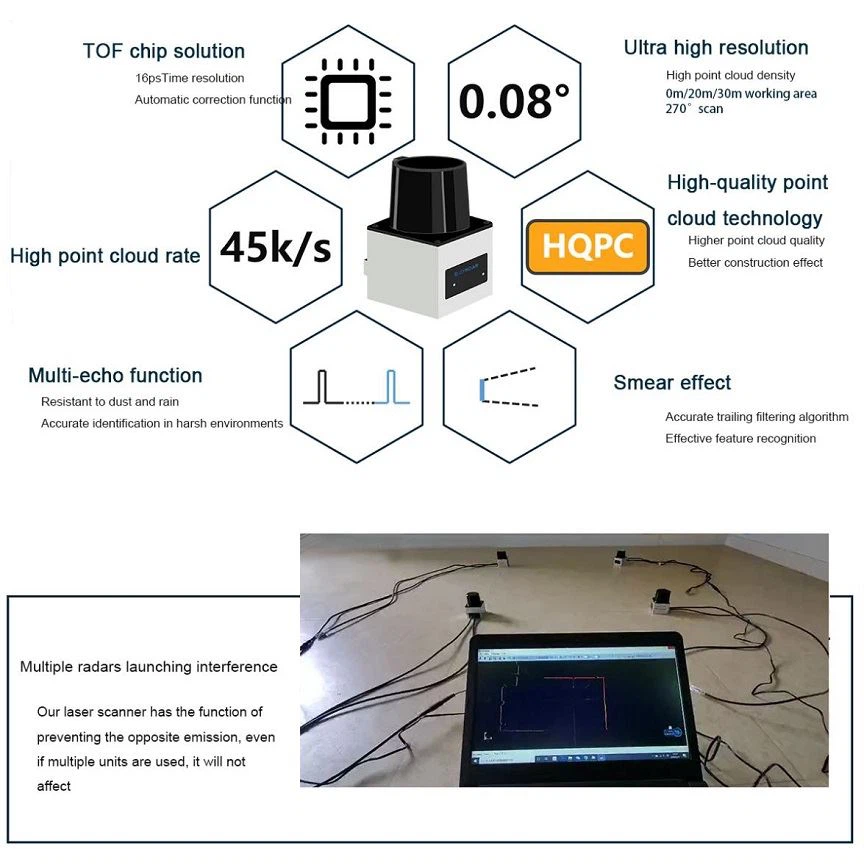

Product Advantages
Software Diagram
Interface
Accessories
Hazardous area protection with safety laser scanner
The laser scanner has several advantages: first, because of the non-contact mode of the laser scanner, thereby minimizing the interference with the normal operation of the machine; second, the laser scanner is usually installed at the bottom corner of the machine or where it is not suitable for contact. Therefore, enough space is reserved for the normal operation of the machine.
Safety laser scanners have been installed in almost every factory automation facility. Its easy assembly, flexible alarm and safety zone settings, wide monitoring range, and high reliability make the safety laser scanner an ideal choice for every field of automated safety assurance from vehicle assembly to robot welding.
