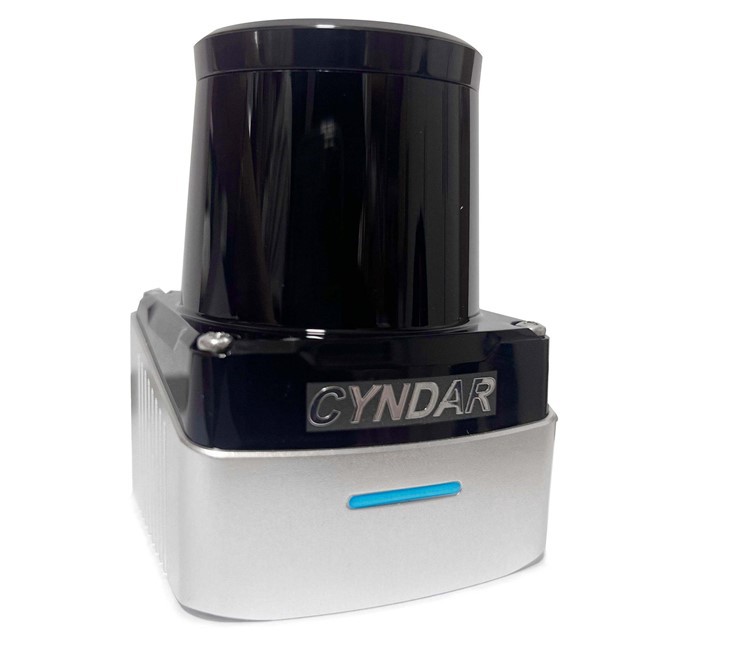

Line Scanning Safety Laser Scanner

Parameter

Product Advantages

Scanning Range/Reflection

1) Operating angle: 280°
2) Anti-glare >100000 l x
3) Detection range: 0.1-50 meters
4) Working indicator: power indicator, status indicator
5) Output port: Ethernet output
6) Anti-fouling level: IP67

Software Diagram

The LiDAR navigation system currently supports SLAM navigation mode.

Obstacle avoidance using LiDAR: When the AGV is working, the navigation mode can be switched at any time according to the scene, so that its navigation accuracy and convenience meet the application requirements.

Notes on use: The core difference between the above navigation modes lies in the calculation method of the feedback position of the car, which is the same as the path planning and control algorithm.

Map: Gray is an unknown area, white is a known area, and dark black is a wall outline.

Red is a laser data outline.

Application

Use a camera to monitor and track open spaces horizontally

In some applications that require monitoring of fixed areas, such as monitoring of public areas such as airports, and safety warnings in specific areas such as camping, it is necessary to install a two-dimensional laser scanner for monitoring in the area; in actual applications, it is usually required to monitor all areas within the detection range of the monitoring equipment within the range of 0~360° around the monitoring equipment. The current monitoring system mainly includes two types: perimeter monitoring system and regional monitoring system, among which the perimeter monitoring system uses LiDAR for monitoring. Area monitoring systems usually install radars on a rotatable base. The radar can be rotated to achieve monitoring at various angles (280°) and can monitor multiple locations in the monitoring area. The XD-TOF-50H scanner has a range of up to 280°, which reduces the time interval between two scans when rotating.

FAQ

1. Can I order samples to check the quality?

Of course can! You can order one or several fixed samples to check the quality.

2. How long can I get after payment?

The payment will be sent within 3 working days after you confirm the payment.

We will send it to you by Express via Fedex, DHL or Air. You will receive it within 3-5 days.

3. Do our laser scanners perform aging tests?

There are aging tests, which can guarantee the durability of product performance.

4. What is our quality management production process?

Our quality management production insists on starting from the production site, by establishing practical plans and measures to ensure the standardization of the production environment. From product design to procurement and assembly, every link has gone through the standardized process design of the company's engineering department, and professional technicians in assembly control every process operation.

5. What are our output methods?

We have switch, Ethernet output.
