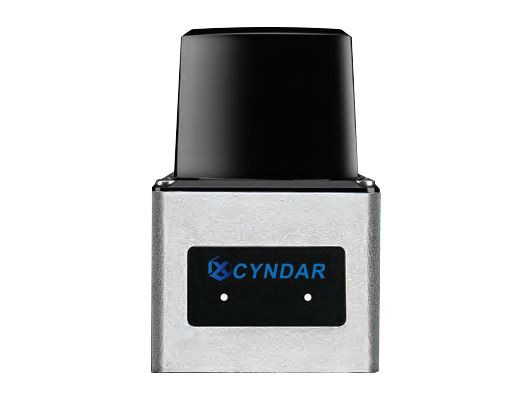

Product Parameters
Model: XD-TOF-10H | Detection range @90% reflectivity: 10m |
Distance measuring accuracy: ±2.9cm | Scanning range: 272° |
Point cloud data merger: 1/2/4/8 points | Scanning frame rate: 10-30Hz |
Minimum resolution: 0.32° (fixed) | Power supply voltage: DC 12 V-24 V |
Laser light source: 905 nm class I | Rated power consumption: 2W |
Data transmission interface: Ethernet100BASE-TX | Starting temperature: -10℃-55℃ |
Storage temperature: -30℃-75℃ | Protection level: IP67 |
Size: 50*50*76mm | Weight: 148g (without cable) |
Standard Series Safety Laser Scanners
Features
· Anti-shooting function, can be used by multiple laser scanners
· Application of eye-safe laser
· Multi-area inspection
· Three signal areas, multiple group combinations
· Learning based on field scenes, monitoring contours
· IP65 dustproof and waterproof
Features
Dimensions

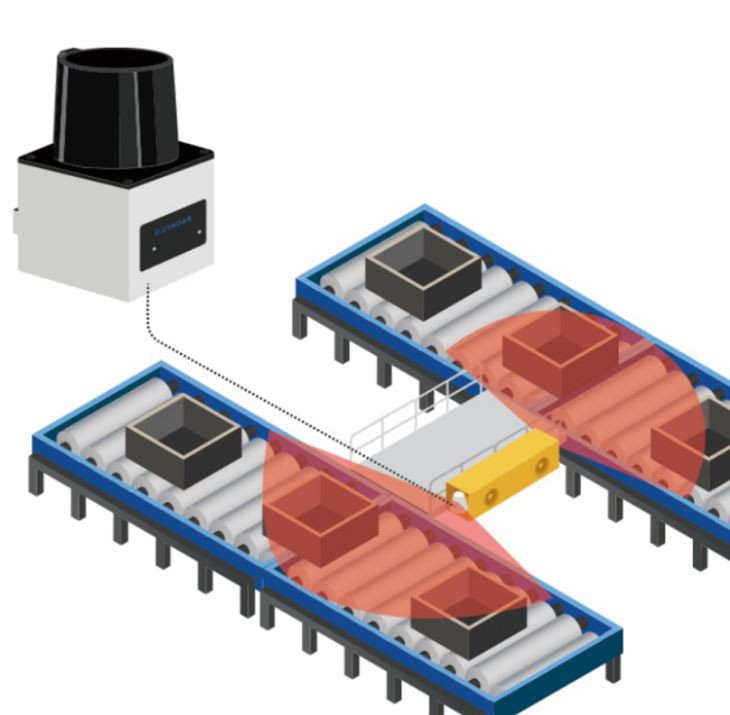

Empty Tray Detection
On the assembly line of the loader storage, we need to check whether the storage location is empty. The compact 2D laser sensor XD series can be used for warehouse detection. The laser scanner can use its two-dimensional scanning area to detect the entire width of the warehouse or whether it is placed. Correct, the XD series of laser scanners provide a reliable solution for this task.
In addition, the 2D laser sensor XD can also use the 2D scatter plot as a positioning aid to determine the contour of the front of the shelf.
