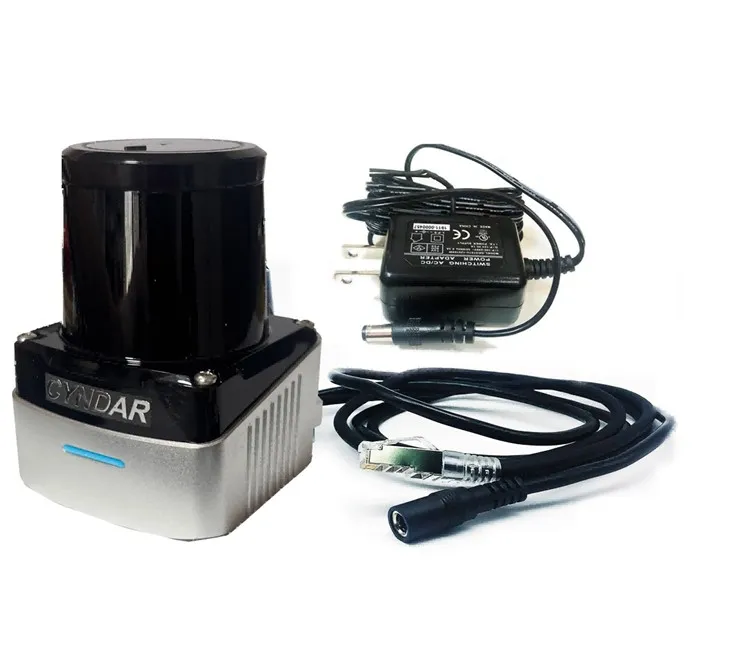

Parameter
|
Number: XD-TOF-50 |
Minimum angular resolution: 0.5°/0.25° |
|
Power consumption (heating module off) <8.4W |
Output resolution: 1.0mm |
|
Light resistance＜80000lux |
Start time≤20ms |
|
Application angle: 270° |
Heating module power supply voltage: 24V±20% |
|
Scanning frame rate: 25Hz/50Hz |
Working temperature: -30°~50° |
|
Protection distance: (when the reflectance is 90%) 50m |
Interface: Ethernet |
Product Advantages
Scanning Range/Reflection
1) Two-dimensional sector area, scanning range 280°, resolution 0.25°
2) Anti-glare less than <100000 l x
3) Integrated rotation design, continuous error ±20 mm
4) One interface: Ethernet
Software Diagram
Product Size
Applications
Case 1: Port crane anti-collision system
Scenario description
At the container terminal of the port, due to the limited working space and complex environment, collision accidents between cranes and between cranes and surrounding obstacles are prone to occur during the process of lifting and moving containers. The use of XD-TOF-50H laser radar can effectively avoid the occurrence of such accidents.
Application method
Install XD-TOF-50H laser radar at key parts of the crane, such as the boom and spreader. The radar can achieve a scanning range of 280° within a distance of 50m, and the angular resolution can reach up to 0.08°, which can accurately detect the position and distance of surrounding objects. The radar transmits the collected data to the control system of the crane via Ethernet, and the control system determines whether there is a collision risk based on the data. Once an object is detected to enter the safe distance range, the system will immediately issue an alarm and take corresponding braking measures, such as reducing the operating speed of the crane or stopping the operation, so as to avoid the occurrence of collision accidents.
Effect advantages
High-precision detection: The radar has a repeatability of up to ±20mm, which can accurately identify the position and distance of surrounding objects, providing reliable protection for the safe operation of the crane.
Adapt to complex environments: The radar uses a 905nm low-power laser light source, which meets the Class I laser safety standard and has an IP67 protection level. It can adapt to the complex environment of the port, such as strong light, dust, humidity, etc., ensuring that it can work normally under various harsh conditions.
FAQ
1. Why choose us?
Answer: Our laser scanner was chosen because of its cheap price and stable quality
2. Can we be your agent?
Answer: Yes, we invite investment from all over the world.
3. Do you have delivery time now?
Answer: Usually, existing samples need 1-3 working days, mass production takes 10-20 days.
4. How do I pay?
A: We can use Western, PayPal, and company accounts.
5. Delivery within 2 working days after payment confirmation, express delivery time is about 3-5 days, other transportation methods are about 7 days or even faster;
The best quality service.
