Product Parameters
|
Product: XD-TOF-10H |
Detection accuracy @90% reflectivity: 10m |
|
Ranging accuracy: ±29mm |
Scanning range: 271° |
|
Point distance data merge: 1/2/4/8 points |
Scanning frame rate: 10-30Hz |
|
Minimum resolution: 0.32° (fixed) |
Rated voltage: DC 12 V-24 V |
|
Laser light source: 905 nm class I |
Power consumption: 2W |
|
Data transmission interface: Ethernet100BASE-TX |
Starting temperature: -11℃-54℃ |
|
Storage temperature: -29℃-76℃ |
Protection level: IP67 |
|
Shape: 50*50*76mm |
Weight: 0.148kg (body) |
Laser scanner for safety protection
Features
* 20-length detection distance
* Environment illumination range: 50000 Lux
* Laser safety level: 905nm class I
* Convenient and fast multi-layer safety protection area setting
* 3 warning areas
* Nano optical dust cover reduces maintenance time
AGV navigation safety laser scanner
Features
Dimensions

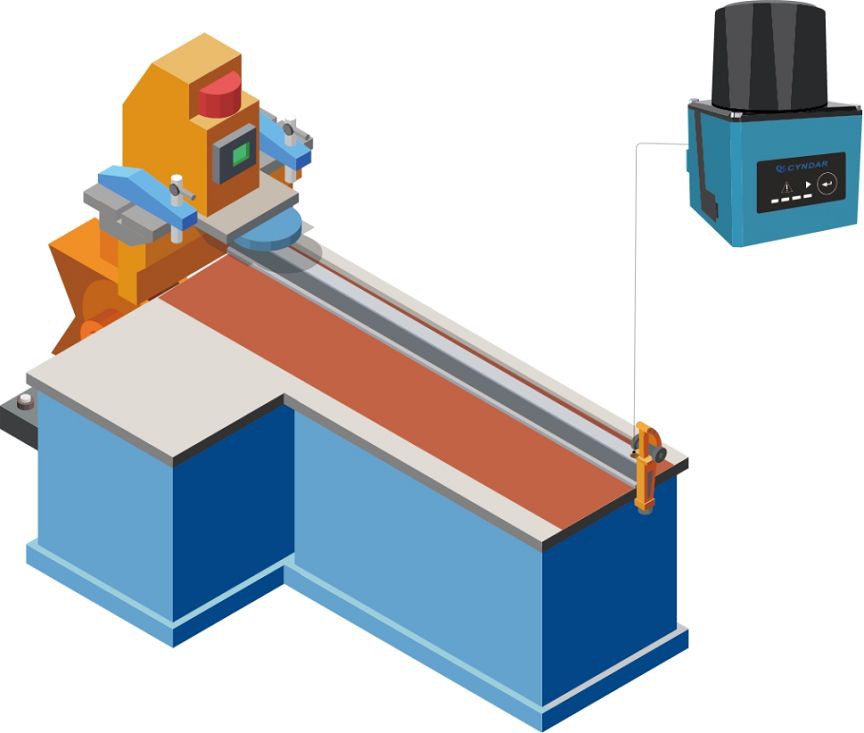

Application on CNC processing table and paper processing table
XT-TOF-05D 2D laser scanner is used to detect curved paper or inclined parts. The digital switch signal sends a signal to the detected object to avoid collision with the tool. It is an alternative solution for detecting bumps, so that the uniformity of the paper can be monitored.
AGVs in logistics warehouses, equipped with specialized laser scanners, achieve a wide 270° scanning coverage, providing continuous, real-time detection of human activity and obstacle distribution within a 20-meter radius. If the AGV's perception system detects a blocked route, it immediately responds by either reducing speed or pausing, ensuring safe navigation within densely packed areas. Furthermore, the AGV supports a high-speed scanning mode of 50Hz, enabling it to sensitively capture changes in dynamic environments and ensure accurate and reliable navigation.
GZ Cyndar Co., Ltd.
Core Business Scope
The company's business covers the entire product chain, including R&D, production, sales, and agency services. Its main products include industrial safety protection devices such as safety light curtains (safety gratings), safety lidars, pressure-sensitive safety mats, and safety edges. The company also provides technical services such as computer technology development, integrated circuit manufacturing, and electronic product testing. The company holds qualifications for both goods and technology import and export.
