Product Description
* TOF measurement technology
* Test length: 10m
* Weak measurement spot, high detection accuracy
* Lighting unit: 50001lux
* Ingress Protection65 protection level
* Suitable for various environments
* Can be remotely maintained and updated
Product Parameters
|
Model: XD-TOF-10HM |
Detection range @90% reflectivity: 10m |
|
Distance measuring accuracy: ±30mm |
Scanning range: 270° |
|
Point cloud data merge: n/a |
Scanning frame rate: 20Hz |
|
Minimum resolution: 0.32° (fixed) |
Power supply voltage: DC 12 V-24 V |
|
Laser light source: 905 nm class I |
Power consumption: 2W |
|
Data transmission interface: 50000Lux |
Working temperature: -10℃-55℃ |
|
Storage temperature: -30℃-75℃ |
Protection level: IP67 |
|
Size: 50*50*76mm |
Weight: 148g (without cable) |
Performance
Software Diagram
Product Size

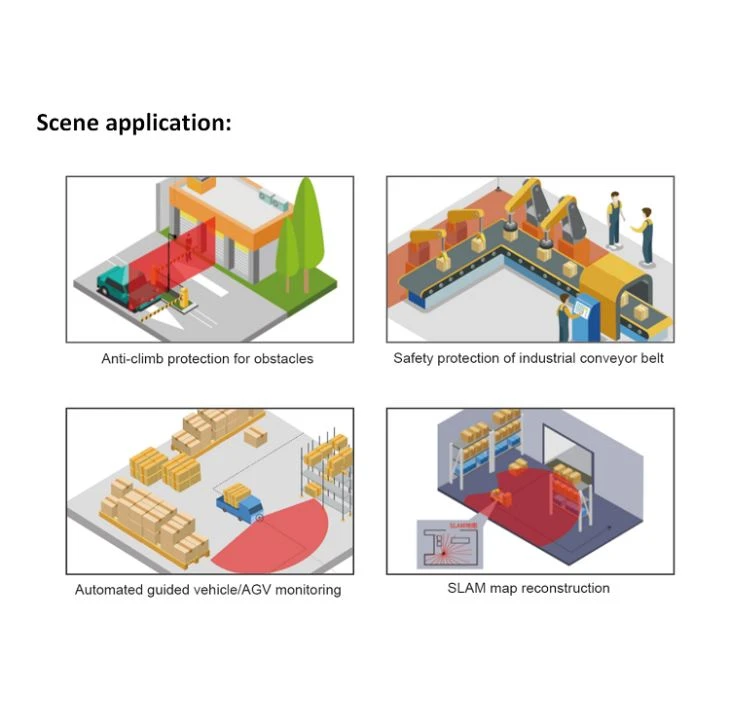

Scene Application
Application of length and width detection of plates or products
In the industrial industry, the 2D laser scanner can be used to quickly measure the workpiece size of products such as wood materials, boxes, steel plates, etc., and calculate the length, width, and height to obtain the size of the wood or product, and the operation process is optimized. Can save labor time costs, thus efficient work rate.
Forklift Protection in Port Container Yards
When operating in open-air yards, a scanner covers a 20-meter radius around the forklift. Using intelligent echo technology, it can detect intruders even in rainy and foggy weather, and activate the forklift's braking system to avoid collisions caused by blind spots.
