Download the product brochure to view all parameters-the model is subject to the product brochure
●The position of the incident light is simple, clear, and the easy-to-confirm optical axis adjustment efficiency
●Building safety circuit without install relay module

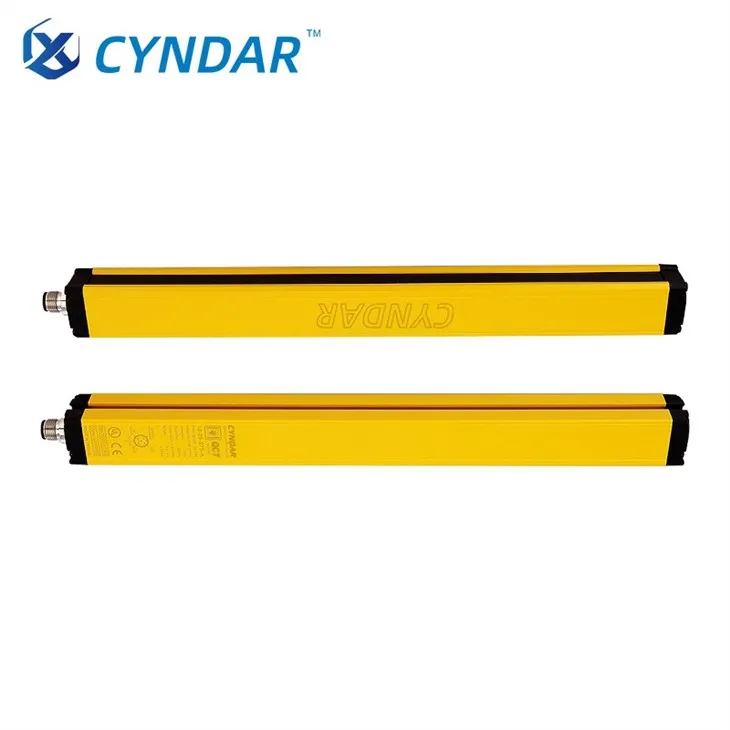

Safety photoelectric sensor technical parameters
Protection Height：Distance of optic axis*(Qty of beam-1)
Reaction Time：≤15ms
Detection Range：30~3000mm, 30~6000mm
Interference of Light：10000Lux(Angle of incidence≥5°)
Type of Light Curtain：Through-beam
Protection Level：IP65
Appearance Dimension：30×30mm×Jmm(J is the length of transmitter /receiver)
Controller：QCA/QCA2
Light Source：Infrared LED
Current Consumption：≤200mA
Ambient Humidity：Operating:35~85%RH Saving:35~95%RH
Working Temperature：Operating:-10~+40℃(do not freeze),Saving:-25~+55℃
Safety light curtain selection diagram
Light curtain sensor wiring diagram
Safety light curtain size chart
Safety light curtain installation diagram
FAQ:
1. Can the beams of light cover only a certain part of the eyes?
Yes, but it must be fixed.
2.Is the security light curtain（safety optical sensor） customizable?
Yes
3. If a device needs two sets of industrial safety light curtains, can it be used at the same time?
Yes, a double sided controller can be configured to control two sets of security light curtains simultaneously.
4. What is your sample policy? To
If it is in stock, we can provide samples, but the customer must pay the sample fee and courier fee. To
5. Are regional agents allowed?
Yes, our global investment agent
