Time of flight sensor for liquid level detection
Application scenario
UAV obstacle avoidance and height fix
Distance measuring instrument
Robot avoiding obstacles
SLAM mapping
Security Monitoring
Specifications
Measuring range: 0.2m~12m (indoor 90% reflectivity)
Power supply voltage: 4.8-5.2V
Communication method: UART, I2C
Measurement accuracy: 20-350cm (±5cm) 351-1200cm (±1.5%cm)
Receiving viewing angle: half angle 1°
Sending viewing angle: half angle 2°
Minimum resolution: 1mm
Test frame rate: Max 500Hz
Anti-ambient light ability: 15KIux
Exposure time: 5us-5000us
Signal amplitude: 3400LSB-7000LSB
Working temperature -10℃-60℃
Advantage
Accurate high-speed ranging
Low power consumption
Competitive system cost
Easy integration with flexible mechanical design
TOF flight sensor technology and ranging sensors can be used in many application areas:
Features
Indoor/outdoor compatible correspondence
Medium and short distance correspondence (0.2m～12m)
Miniaturization countermeasures, easy to install
Multiple measurement modes
Long service life

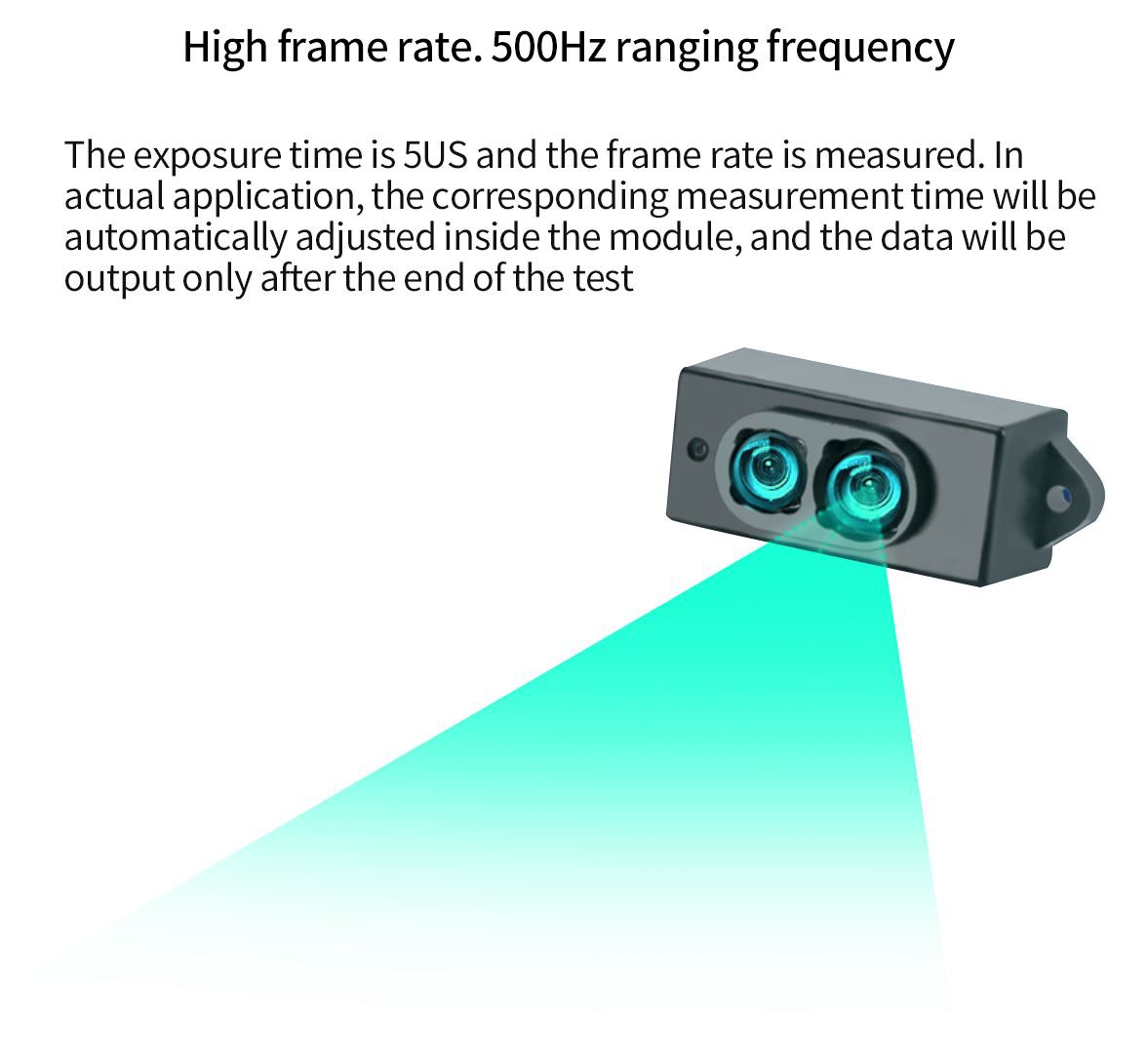

High frame rate, greater than 500Hz (@5us exposure)
Temperature compensation
Reflectivity compensation for different objects
LED light source, eye safety
Low-cost ranging solution
