Name: Safety Mats Are Used For Stamping And Press Machines
Brand: Cyndar
SKU: 271013298

Safety Mats Are Used For Stamping And Press Machines

These machines are often accompanied by high pressure and high-speed movement during operation, so the safety risk is high. CYNDAR's safety mat can monitor the working area in real time, and once it detects that an operator is approaching or entering the danger zone, it will quickly trigger the shutdown mechanism. This can effectively protect personnel and save costs

Safety mats are used for stamping and pressure machinery

Stamping and pressure machinery have significant safety risks during operation due to high pressure environment and high-speed movement, including mechanical impact injury, material splashing and electrical hazards. To ensure personnel safety, CYNDAR safety mats can trigger the shutdown mechanism at the moment the operator approaches or enters the dangerous area by real-time monitoring of the working area.

Active protection

Different from traditional physical isolation, it uses sensing technology to achieve dynamic response, reducing pinching and collision accidents caused by distracted operation or illegal entry;

Cost-effectiveness

Reduce mechanical loss caused by emergency stop of equipment, while avoiding downtime compensation and maintenance costs caused by accidents;

ompliance enhancement

CMeet the requirements of safety regulations for protective devices (such as photoelectric switches, fences, etc.), and supplement the emergency lag of human operation.

This solution uses technical intervention to cut off the hazard chain before the risk occurs and realize human-machine collaborative safe operation.

-01-3

Product selection and technical standards

Model specification

PSM4- A * B - C D E F - G - H

Model Description

	A	B	C	D	E	F	G	H
Model	Width	Length	Number of splices	Description of size	Color/material configuration	Resistor configuration	Cable length	Controller
PSM4 (default)	L2:Safety pad width	L1: safety pad length	1：Not writing	A: After installing the outer frame	B: Black rubber surface (default)	K: 4-core cable (default)	3m: Standard configuration. Not writing (default)	SRC: safety relay
PSM6			2: Splice 2 pieces	F: Net carpet size, additional frame required	Y: Yellow PVC (pattern)	KF: 2 sets of 2 cores	6m: 6 meters cable
PSM11			3: Splice 3 pieces	P: Net carpet size, without outer frame	H: Red PVC (pattern)	R: With terminal resistor (8.2KΩ)	8m: 8 meters cable
			4: Splice 4 pieces	S: Customized type

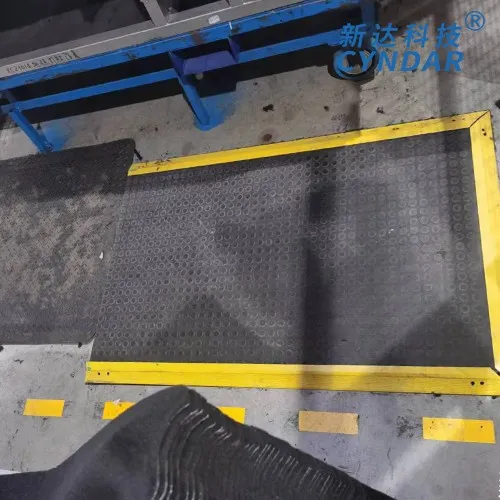

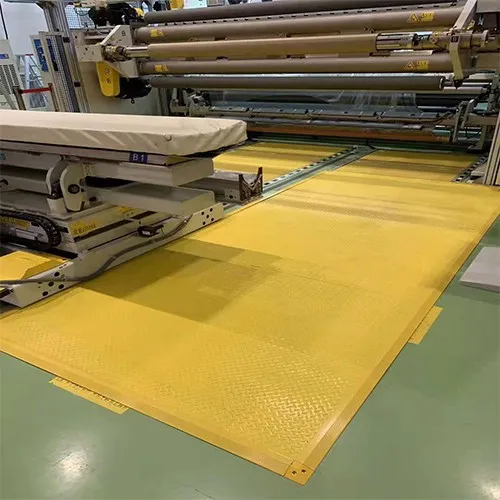

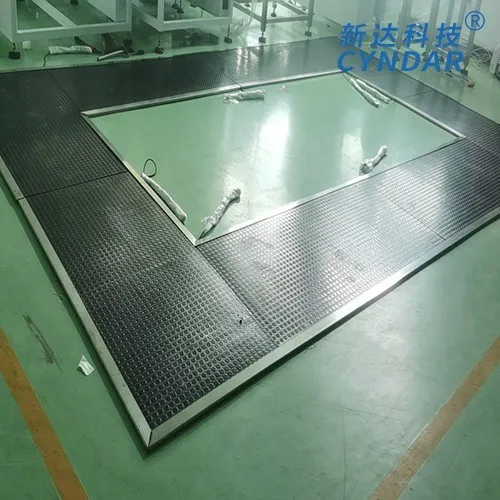

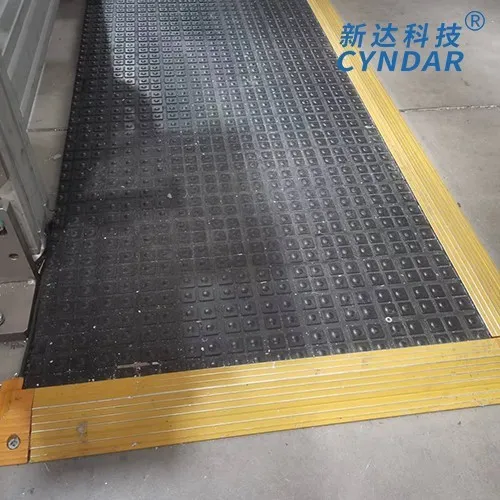

Safety mat case

FAQ

Q: How to customize products according to working conditions?

A:1. Tailor-made: The company can carry out personalized design and production according to the special circumstances and requirements of users; design the best intelligent solutions according to your industry needs. 2. You can contact us via email, WhatsApp or WeChat to tell us your needs and working conditions. We will select the right product for you

Q: How to contact you to buy?

A: You can contact our salesperson directly through WhatsApp or WeChat on the side of the webpage, and leave a message about your needs. The salesperson will reply to you as soon as possible; or leave a message in the Contact Us location and leave your email, and our salesperson will reply to you within 12 hours. It should be noted that try not to use Gmail's mailbox. When our corporate mailbox replies to you, it is easy to be blocked.
